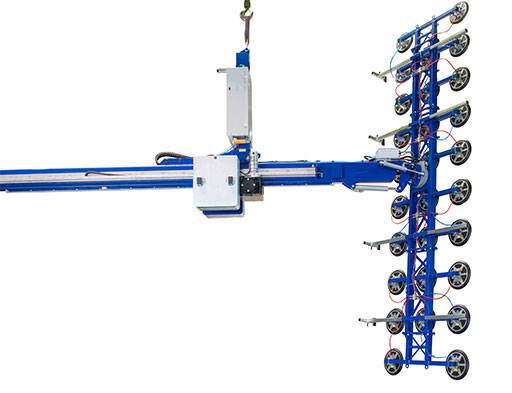

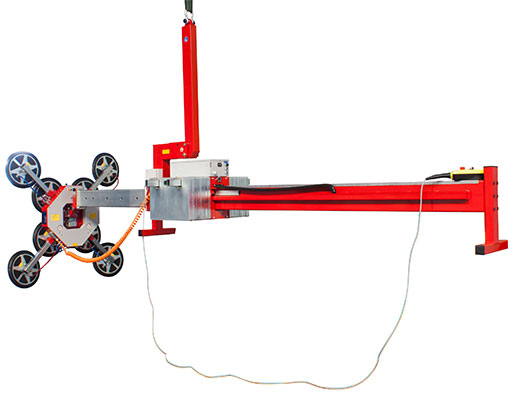

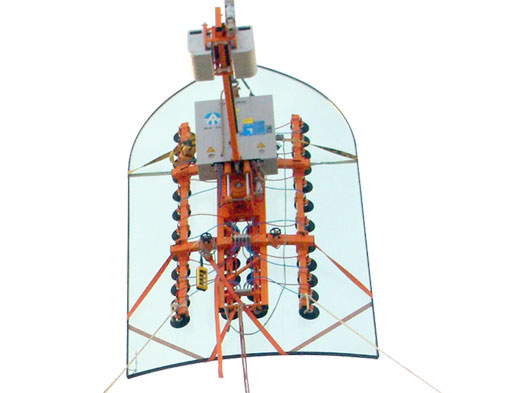

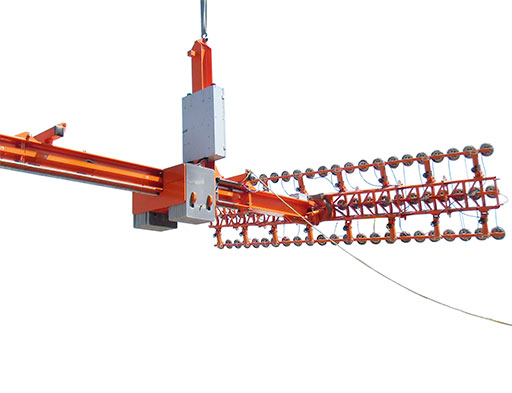

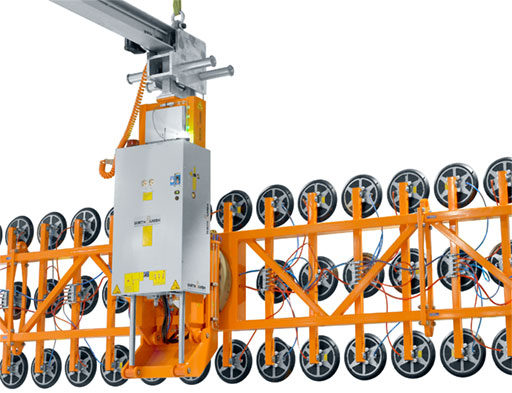

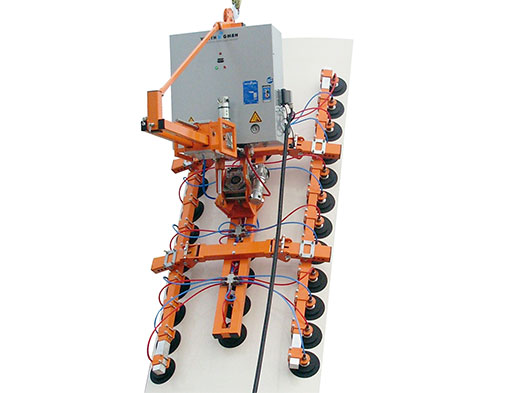

Devices with integrated CWB

Vakuumheber mit integrierter GGA sind i.d.R. dadurch gekennzeichnet, dass die beiden Teilgeräte bzgl. ihrer Steuerung und/oder Energieversorgung oder auch vorhandener Bewegungsfaktoren (Motoren, Getriebe, Hydraulikaggregate, Zylinder etc.) miteinander verbunden sind.


Safety features

  • Compliance with all criteria of DIN EN 13155
  • Devices for internal handling of glass according DIN EN 13135
  • CE mark according to Machinery Directive 2006/42/EG
  • Devices with dual-circuit vacuum systems for construction site use
  • Each vacuum circuit with 2-fold safety
  • Integrated vacuum gauges
  • Optical and/or acoustic warning devices signaling deviations from the nominal condition
  • Pressure controlled vacuum to reduce the consumption of energy and compressed air
  • Integrated pressure switch control to indicate malfunctions
  • Construction site devices with 24 V battery systems with considerably increased safety compared to 12 V systems
  • Battery devices with built-in battery level indicator
  • Vacuum reservoir to compensate vacuum loss
  • Energy-self-sufficient indicator to signal breakdown of energy supply
  • Integrated inclination sensors to limit inclination against horizontal direction to ± 10°
  • Electrical coupling of “Release” function of the connected vacuum lifter to neutral position of the counterweight balancer

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery

Construction site applications
