Manipulator for handling large-sized flat and curved glass elements

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

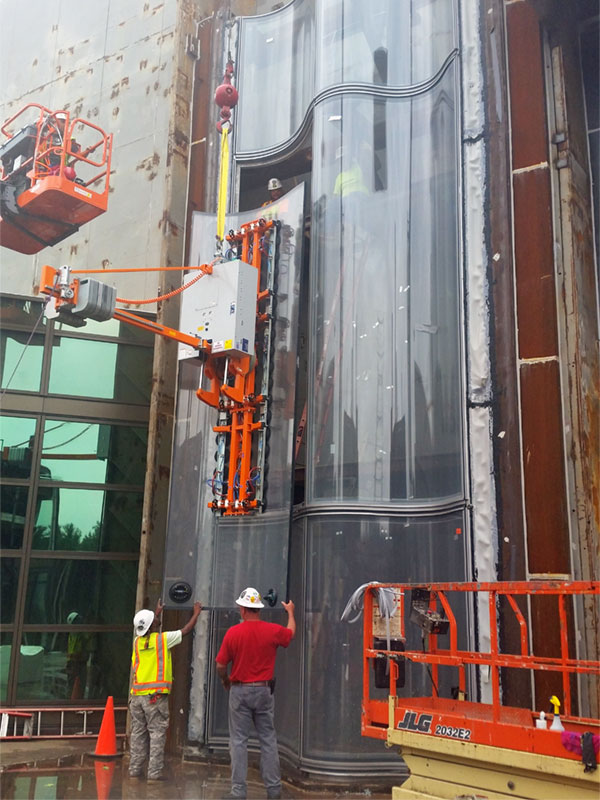

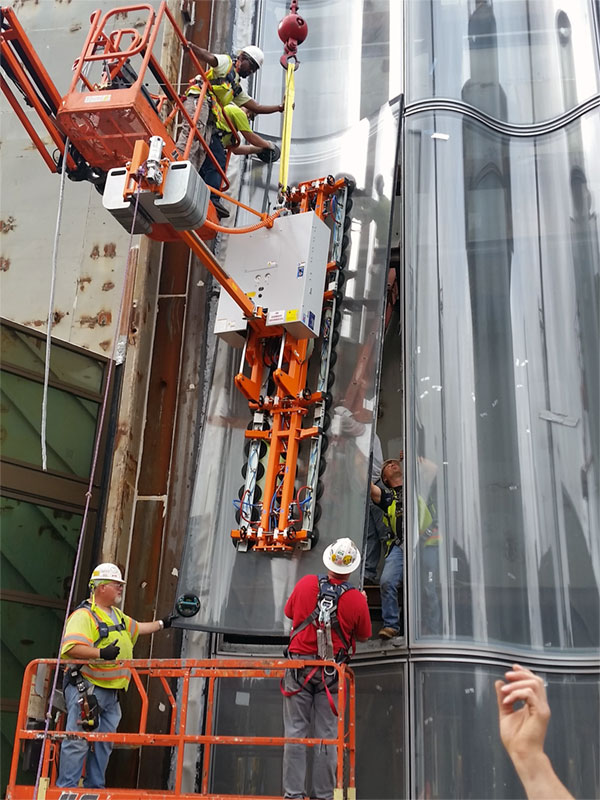

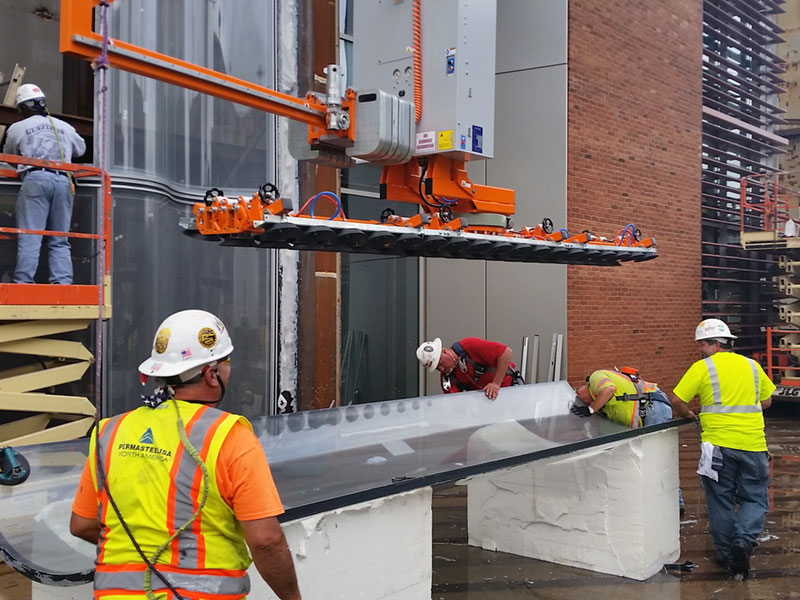

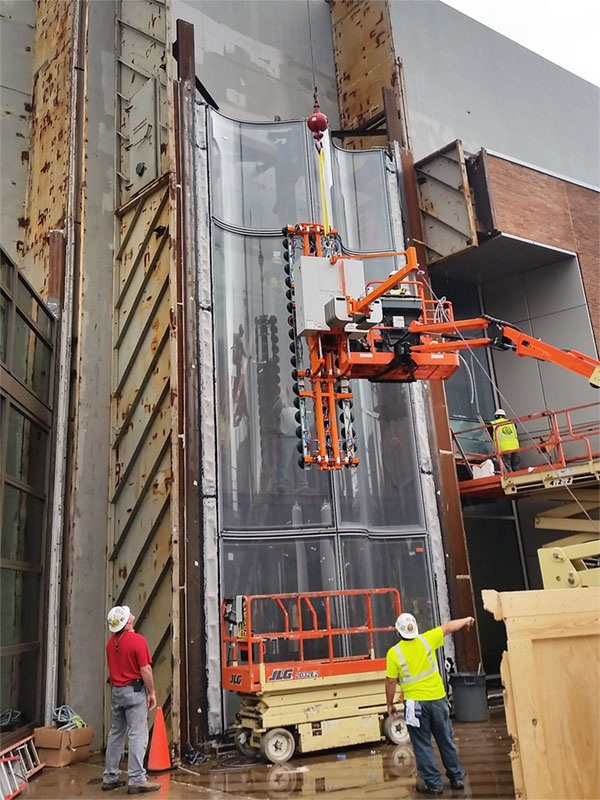

Handling flat and curved glass panes on construction sites (radius ≥ 0.5 m)

Hoist

  • crane

Fastening

  • at the crane hook

Material to be handled

The OKTOPUS® GL-MGS 1600 is suitable for handling flat glass, curved glasses (concave or convex, bending radius ≥ 1.5 m) and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Description

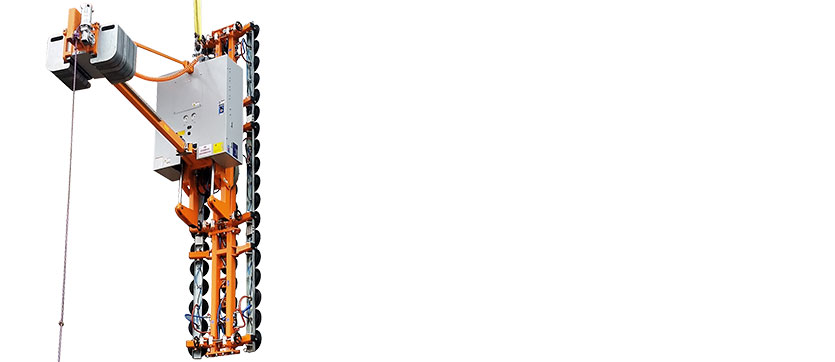

The vacuum based load lifting attachment OKTOPUS® GL-MGS 1600 is designed for handling glass panes and window elements with a maximum weight of up to 1600 kg on construction sites.

The suction frame can hydraulically be tilted by 90° and rotated hydraulically by 360°. Furthermore, the load can be balanced by an integrated counterweight balancer. All functions are operated with a remote control (optional radio remote control). The necessary negative pressure in the suction pads is generated by a 24 V DC vacuum pump.

Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Device / Suction padsmaximum Working Load Limit
    18 suction pads Ø 200 mmup to 400 kg
    54 suction pads Ø 200 mmup to 1,200 kg
    72 suction pads Ø 200 mmup to 1,600 kg
  • Weightca. 1230 kg including 72 suction pads and 12 counterweights 25 kg each
    Vacuum generationvacuum pump
    Operationradio remote control
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V battery system
    Optional equipmenttransport rack
    Movements
    Rotatingelectrically 360°stepless
    Tiltingelectrically 90° stepless

Use of OKTOPUS® GL-MGS 1600

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
