Vacuum lifting device for construction site use with hydraulic rotating and tilting function as well as optional with detachable electrically driven counterweight balancer

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling flat glass panes and window elements. The suction areas of the elements to be handled must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

  • crane, truck-mounted crane

Fastening

  • at the crane hook

Description

The vacuum based load lifting attachment OKTOPUS® GL-M 8000 DES So 430 R EA B24 P is designed to handle large-sized glass panes and window elements with a maximum weight of up to 8,000 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer).

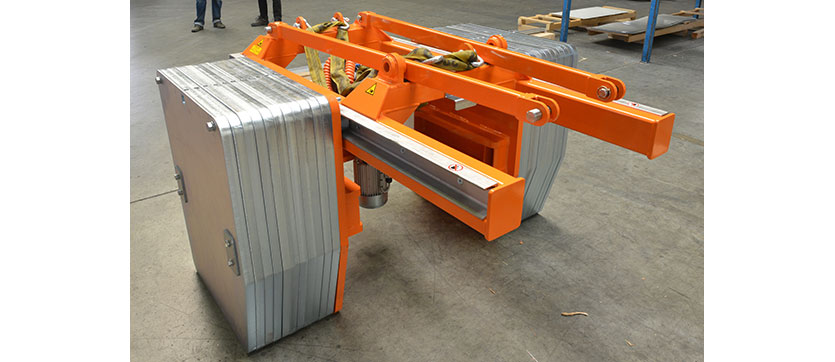

The suction frame can hydraulically be rotated endless by 360° and tilted by 15°. A counterweight balancer with electrically driven counterweights serves for balancing the load. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Suction pads maximum Working Load Limit
    80 suction pads ∅ 400 mmup to 8,000 kg with suction frame
  • Weightminimum 1,180 kg up to maximum 6,650 kg with counterweight balancer
    Suction pads80 pcs. ∅ 400 mm
    Suction frame versions2.7 m x 0.85 m ; with up to 12 suction pads ; Working Load Limit 1,200 kg
    5.4 m x 0.85 m ; with up to 24 suction pads ; Working Load Limit 2,400 kg
    6.3 m x 0.85 m ; with up to 28 suction pads ; Working Load Limit 2,800 kg
    9.0 m x 0.85 m ; with up to 40 suction pads ; Working Load Limit 4,000 kg
    2.7 m x 1.80 m ; with up to 24 suction pads ; Working Load Limit 2,400 kg
    5.4 m x 1.80 m ; with up to 48 suction pads ; Working Load Limit 4,800 kg
    6.3 m x 1.80 m ; with up to 56 suction pads ; Working Load Limit 5,600 kg
    9.0 m x 1.80 m ; with up to 80 suction pads ; Working Load Limit 8,000 kg
    Vacuum generationelectrical vacuum pump
    Operationcable remote control
    Vacuum systemdual-circuit system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    - radio remote control
    Optional equipment- technical documentation
    - built-in battery charger
    - transport rack
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotation of the suction framehydraulically 360° endless
    Tilting the suction framehydraulically 15°
