Manipulator for handling large-sized flat and curved glass elements in difficult to access areas (facade openings, eaves)

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling flat and curved glass panes in difficult to access areas (façade openings, eaves). The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

  • crane

Fastening

  • at the crane hook

Description

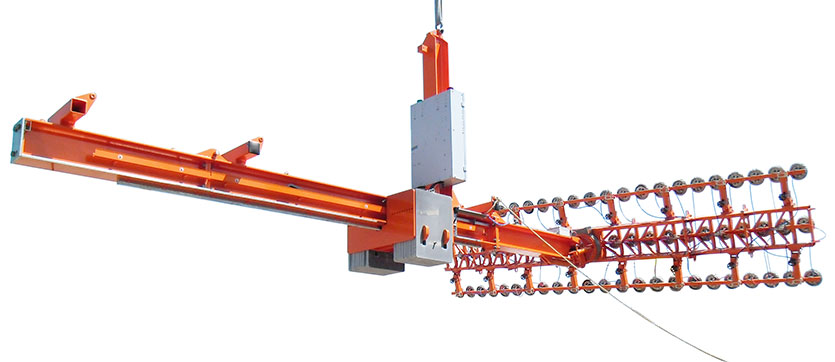

The vacuum based load lifting attachment OKTOPUS® GL-M 6000 GGA is designed to handle large-sized glass panes and window elements with a maximum weight of up to 6,000 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). Furthermore, the load can be balanced by an integrated movable counterweight balancer. The overhang reaching from the suction frame to the crane eye amounts to 4 m in length. The suction frame can hydraulically be rotated endless by 360°, tilted by ±20° and swiveled by ±20°. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Version Device / Suction pads maximum Working Load Limit
    Version A, suction pads Ø 400 mm
    for flat glass elements
    5 m x 2 m, 34 suction pads
    8,45 m x 2 m, 58 suction pads
    9,6 m x 2 m, 66 suction pads
    13,05 m x 2 m, 90 suction pads
    3,400 kg
    5,800 kg
    6,000 kg
    6,000 kg
    Version B, suction pads Ø 280 mm
    for flat glass elements
    4 m x 0,86 m, 24 suction pads
    6 m x 0,86 m, 36 suction pads
    4 m x 2 m, 48 suction pads
    6 m x 2 m, 72 suction pads
    1,150 kg
    1,750 kg
    2,300 kg
    3,500 kg
    Version C, suction pads Ø 400 mm
    for flat glass elements


    für flache und gebogene Glasscheiben, Radius ≥ 3.500 mm

    2,2 m x 2 m, 20 suction pads
    4 m x 1 m, 36 suction pads

    2,2 m x 1 m, 10 suction pads
    4 m x 2 m, 18 suction pads

    2,000 kg
    3,500 kg

    1,000 kg
    1,800 kg
    Version D, suction pads Ø 280 mm
    for flat glass elements


    für flache und gebogene Glasscheiben, Radius ≥ 4.000 mm

    3 m x 0,65 m, 16 suction pads
    8 m x 0,65 m, 32 suction pads

    3 m x 2 m, 28 Saugteller
    8 m x 2 m, 64 suction pads

    750 kg
    1,500 kg

    1,300 kg
    3,000 kg
    Version E, suction pads Ø 280 mm
    for flat and curved glass elements, Radius ≥ 3,000 mm
    4 m x 2 m, 32 suction pads
    6 m x 2 m, 50 suction pads
    8 m x 2 m, 62 suction pads
    1,560 kg
    2,440 kg
    3,000 kg
    Version F, suction pads Ø 280 mm
    for flat and curved glass elements, Radius ≥ 3.000 mm
    2,28 m x 1,68 m, 18 suction pads 1,000 kg
    The Working Load Limit must not exceed the Working Load Limit of the used suction bridge!
  • Weightca. 10.5 t (fully equipped)
    Suction pads90 pcs. ∅ 280 mm
    Vacuum generationwith electrical vacuum pump, non-return valve
    blow-off function for quicker air supply of the suction pads
    Operationradio remote control (2.4 GHz)
    Power supply24 V battery system
    Vacuum systemdual-circuit system for construction site use
    Counterweights20 pieces removable (1 counterweight = 240 kg)
    1 traveling cage (1,000 kg)
    Optional equipment- technical documentation
    - built-in battery charger (suitable for supply voltage USA)
    - transport rack
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotation of the suction bridgehydraulically 360° endless
    Tilting the suction bridgehydraulically ± 20°
    Swiveling of the suction bridgehydraulically ± 20°

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
