Vacuum lifting device with counterweight balancer for handling flat and zig-zag profiled glass elements with suction areas on different levels

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

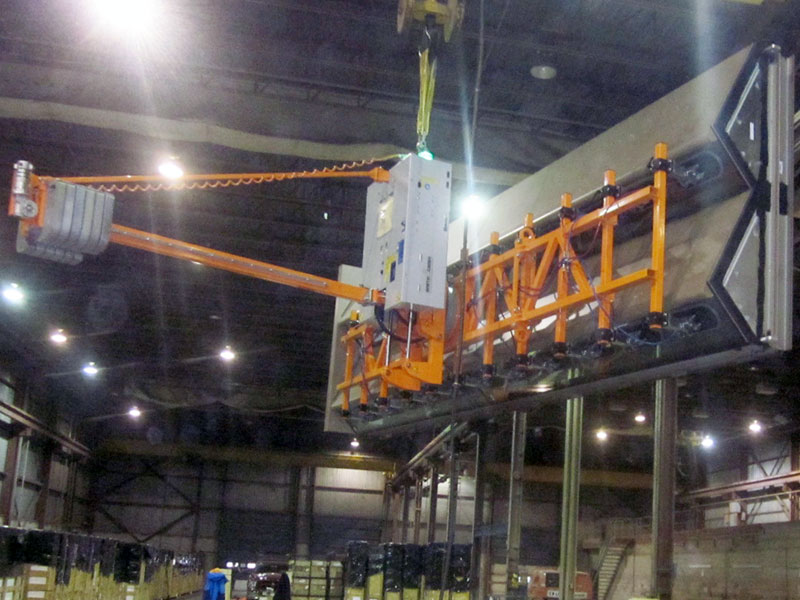

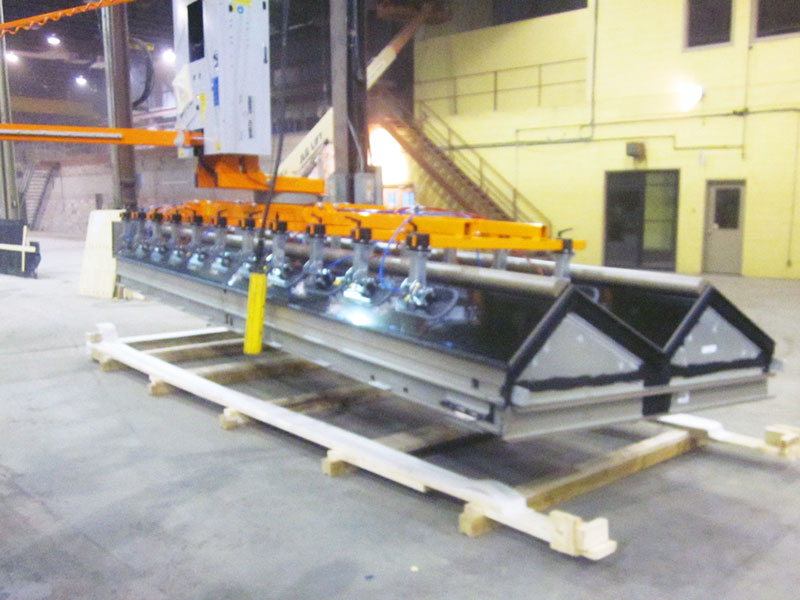

The OKTOPUS® GL-M 1300 is suitable for handling flat and zig-zag profiled glass elements on construction sites. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

  • crane

Fastening

  • at the crane hook

Description

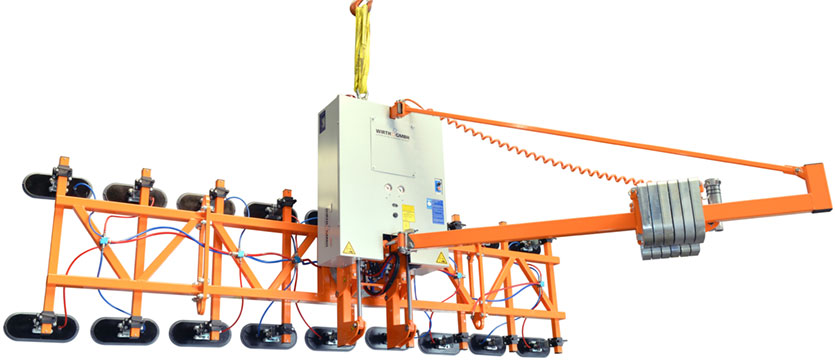

The vacuum based load lifting attachment OKTOPUS® GL-M 1300 is designed for handling flat and zig-zag profiled glass elements as well as window elements that are arranged at an angle to each other with a maximum weight of 1300 kg on construction sites. The integrated counterweight balancer that can hydraulically be tilted laterally allows balancing the load even with multidimensional eccentrically load pick up and allows by that a very precise positioning of the load. The suction frame can hydraulically be tilted by 90° and rotated by 360°. All functions are operated with a remote control (optional radio remote control). The necessary negative pressure in the suction pads is generated by a 24 V DC operated vacuum pump.

Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.

The integrated blow-off function allows compressed-air supported and by that a quicker release of the suctioned load.


  • Device / Suction padsmaximum Working Load Limit
    10 suction pads oval 430 x 180 mm engagedmax. 590 kg
    18 suction pads oval 430 x 180 mm engagedmax. 1,060 kg
    22 suction pads oval 430 x 180 mm engagedmax. 1,300 kg
  • Weightapprox. 1,260 kg including counterweights
    Suction pads22 suction pads oval 430 x 180 mm
    Suction frame2,430 * 1,180 mm with 10 suction pads, Working Load Limit up to 590 kg
    4,430 * 1,180 mm with 18 suction pads, Working Load Limit up to 1,060 kg
    5,430 * 1,180 mm with 22 suction pads, Working Load Limit up to 1,300 kg
    Vacuum generationvacuum pump with integrated blow-off function
    Operationradio remote control
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilitiescable remote control
    Optional equipment- technical documentation
    - built-in battery charger
    - transport rack
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotating the suction frameelectrically driven 360° endless
    Tilting suction framehydraulically 90°

Use of OKTOPUS® GL-M 1300 DES 430

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
