Manipulator with integrated counterweight balancer for construction site use with electrically driven rotating and hydraulic tilting function

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling flat glass and window elements between buildings and below canopies, overhangs or other difficult to access areas. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

  • truck-mounted crane, mini crane

Fastening

  • at the crane hook

Description

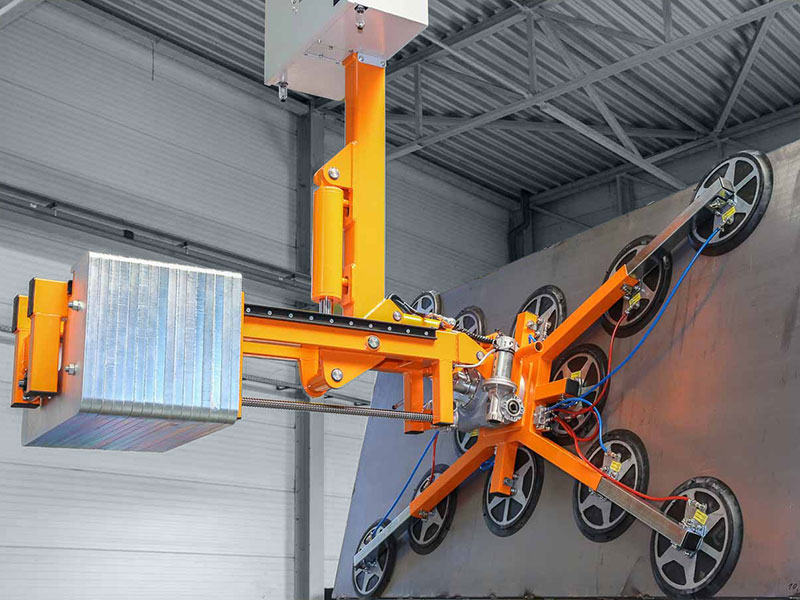

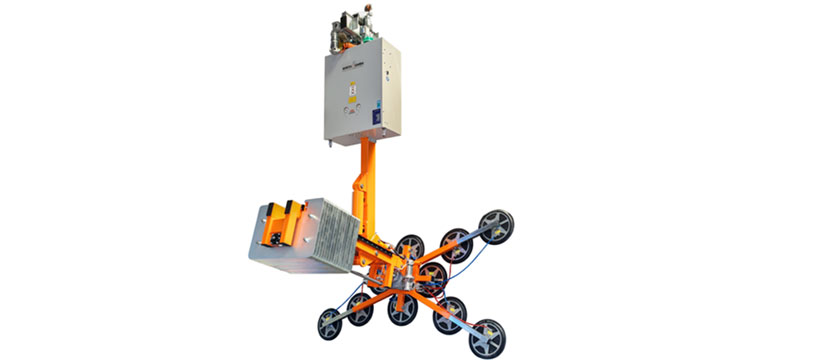

The vacuum based load lifting attachment OKTOPUS® GL-M 1200 DES So 530 R E B24 P is designed to handle large-sized glass panes and window elements up to a maximum weight of 1200 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer).

The integrated movable counterweight balancer allows balancing the device with the suctioned load. Due to the overhang reaching from the suction frame to the crane mounting it is possible to install loads with a maximum weight of up to 1,200 kg below canopies or overhangs with a depth of up to 70 cm.

The suction frame can electrically be rotated endless by 360° and hydraulically be tilted by -24°/+18°. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Device / Suction padsmaximum Working Load Limit
    8 suction pads ∅ 400 mmup to 800 kg (flat glass)
    12 suction pads ∅ 400 mmup to 1,200 kg (flat glass)
  • Weightmax. 1,670 kg with 16 pieces counterweights a 65 kg (1,040 kg)
    Suction pads12 pcs. Ø 400 mm
    Suction frame versionsbasic version: 1,630 x 1,170 (8 suction pads; Working Load Limit 800 kg)
    full version: 2,530 x 1,600 (12 suction pads; Working Load Limit 1,200 kg)
    Vacuum generationelectrical vacuum pump
    Operationradio remote control
    Vacuum systemdual-circuit system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DV battery system
    Optional facilitiesblow-off function
    Optional equipment- technical documentation
    - built-in battery charger
    - transport rack
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotation of the suction frameelectrically driven 360° endless
    Tilting the suction framehydraulically -24°/+18°
    Tilting the counterweight balancerhydraulically 90°
    Shifting the counterweightselectrical
    Shifting the crane eyeelectrical 200 mm

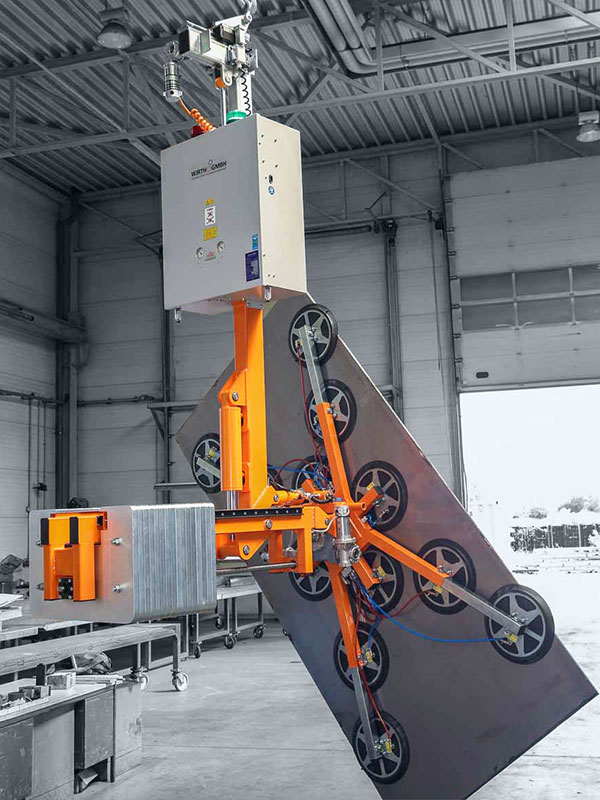

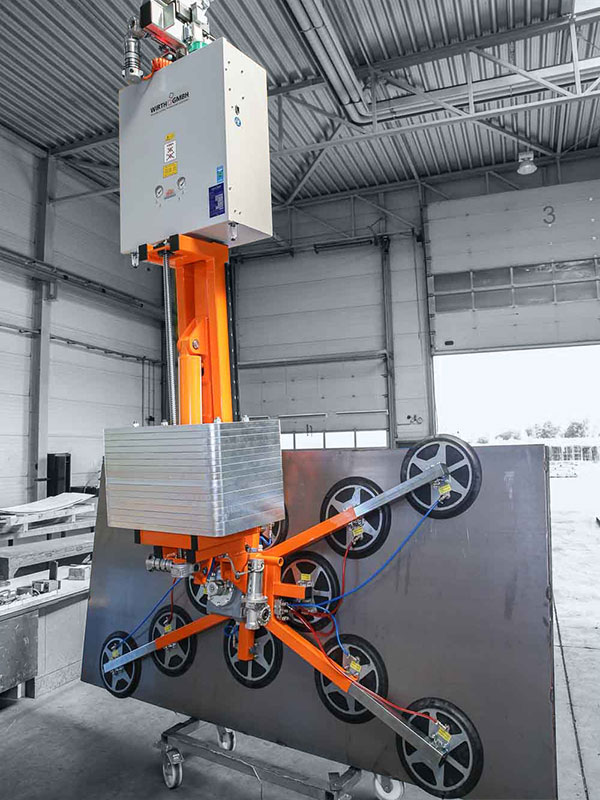

Use of OKTOPUS® GL-M 1200 with counterweight balancer

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
