Manipulator with integrated counterweight balancer for construction site use with electrically driven rotating and hydraulic tilting function

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

The OKTOPUS® GL-M 1500 is suitable for handling flat glass panes and window elements between buildings and below canopies, overhangs or other difficult to access areas. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

  • truck-mounted crane, mini crane

Fastening

  • at the crane hook

Description

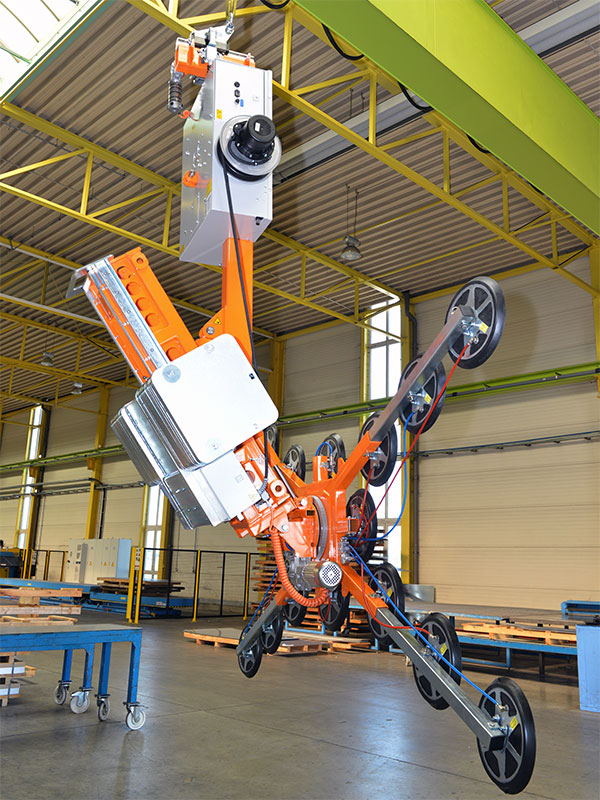

The radio-controlled vacuum based load lifting attachment OKTOPUS® GL-M 1500 DES So 530 R E B24 P with integrated counterweight balancer is designed to handle large-sized glass panes and window elements with a maximum weight of up to 1,500 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device that can be adjusted electrically by 200 mm allows attaching the device to an existing hoist (provided by the customer). The integrated shifting counterweight balancer allows balancing the device with suctioned load.

Due to the overhang reaching from the suction frame to the crane mounting, loads up to a weight of 1,500 kg can be installed below canopies or overhangs. The length of the overhang of version I (short) amounts to 70 cm. By mounting the front and the back extensions the overhang is increased and by that the accessible depth of overhangs to 3.5 m.

The suction frame can electrically be rotated endless by 360° and tilted hydraulically by -24°/+18°. In addition the counterweight balancer can be tilted hydraulically by 90° and hydraulically height adjusted by 300 mm. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Device / Suction padsmaximum Working Load Limit
    8 suction pads ∅ 400 mmmax. 800 kg
    16 suction pads ∅ 400 mmmax. 1,800 kg
  • Weightversion I (short) ca. 2,440 kg including 26 counterweights
    version II (long) ca. 2,900 kg including 26 counterweights
    Suction pads16 pcs. ∅ 400 mm
    Suction frame versionsbasic version: 1,600 x 1,180 mm(8 suction pads; Working Load Limit 800 kg)
    full version: 3,420 x 2,030 mm(16 suction pads; Working Load Limit 1,500 kg)
    Vacuum generationelectrical vacuum pump
    Operationradio remote control
    Vacuum systemdual-circuit system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    Optional equipment- technical documentation
    - built-in battery charger
    - transport rack
    Movements
    Lifting and loweringhydraulically 300 mm
    Rotating horizontallyin the crane hook, manually 360°
    Rotation of the suction frameelectrically driven 360° endless
    Tilting the suction framehydraulically -24°/+18°
    Tilting the counterweight balancerhydraulically 90°
    Shifting the counterweight balancerelectrically
    Shifting the crane eyeelectrically 200 mm

Use of OKTOPUS® GL-M 1500 with counterweight balancer

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
