Vacuum lifting device for construction site use with manual rotating and tilting function for lifting and transporting long and narrow glass elements
- 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
- for construction site use according to DIN EN 13155
Handling of long, narrow and rectangular flat glass panes and window elements for facades and conservatories. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.
crane, truck-mounted crane
- at the crane hook

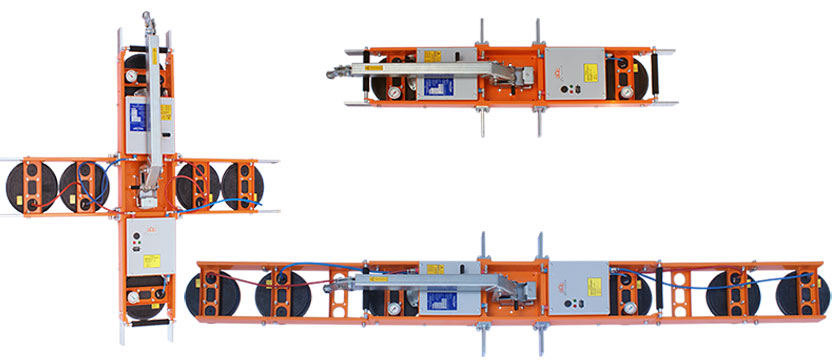

The OKTOPUS® GLASS-Jack GL-LN 600 is suitable especially for lifting and installing long and narrow glass elements (e.g. for the installation of conservatories) up to a maximum weight of 600 kg. The additional option to configure the GL-LN 600 cross-shaped extends the application range of the device regarding rectangular glass panes as well.
The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The suction frame can manually be rotated by 360° and tilted by 90°. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system.
The optional available blow-off function eases and quickens the release of suctioned glass panes. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load is ensured at all times.
Device / Suction pads maximum Working Load Limit 4 suction pads Ø 300 mm up to 300 kg 6 suction pads Ø 300 mm up to 450 kg 8 suction pads Ø 300 mm up to 600 kg
Weight Depending on the configuration approx. 60 kg - 95 kg Suction pads 4, 6 or 8 pcs. Ø 300 mm Vacuum generation electrical vacuum pump Operation operating lever on the device Vacuum system dual-circuit vacuum system for construction site use Nominal pressure pneumatic system -0.65 bar to -0.73 bar Power supply 24 V DC battery system Optional facilities blow-off function Optional equipment - crane mounting horizontal
- transport box
Movements Lifting and lowering by the crane hook Rotating horizontally in the crane hook, manually 360° Rotation of the suction frame manually 360°, lockable every 45° Tilting the suction frame manually 0-90°

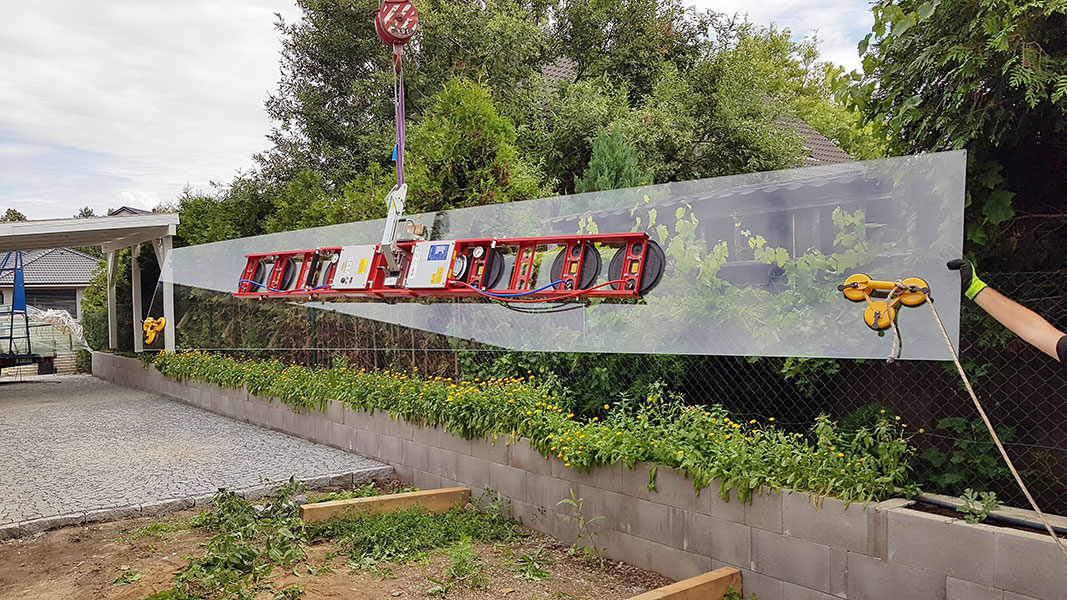

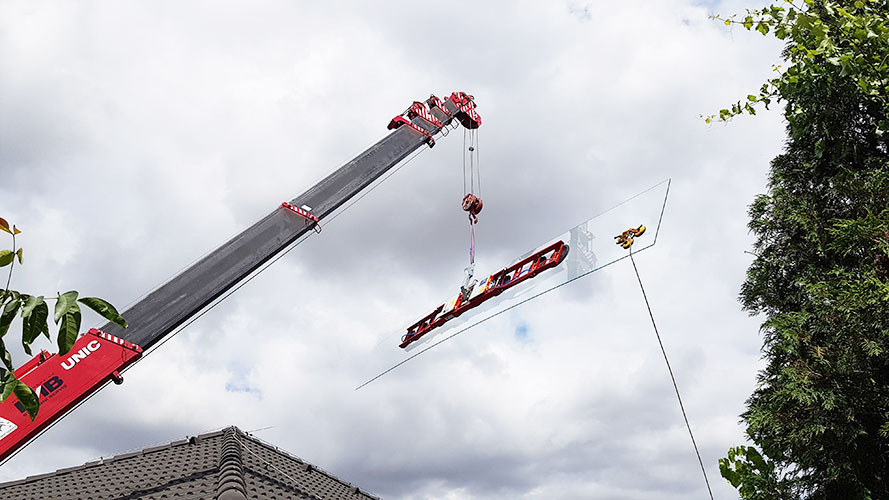

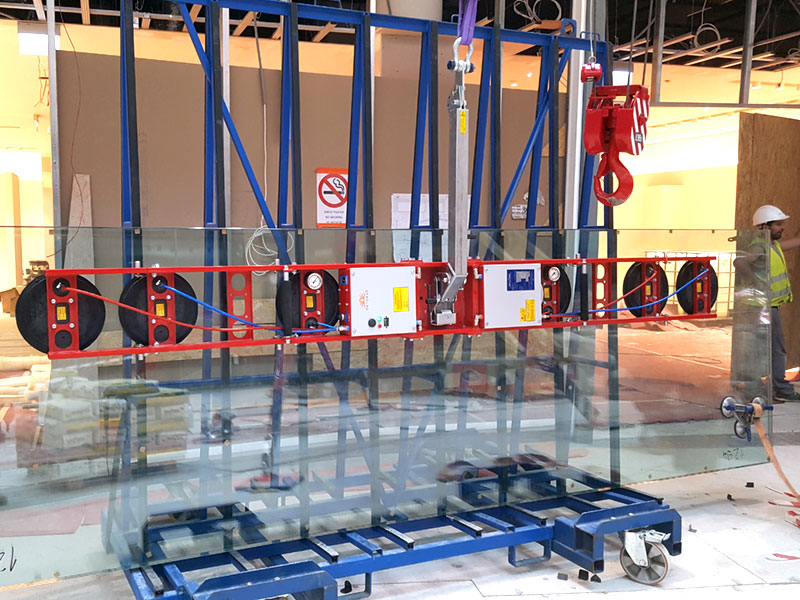

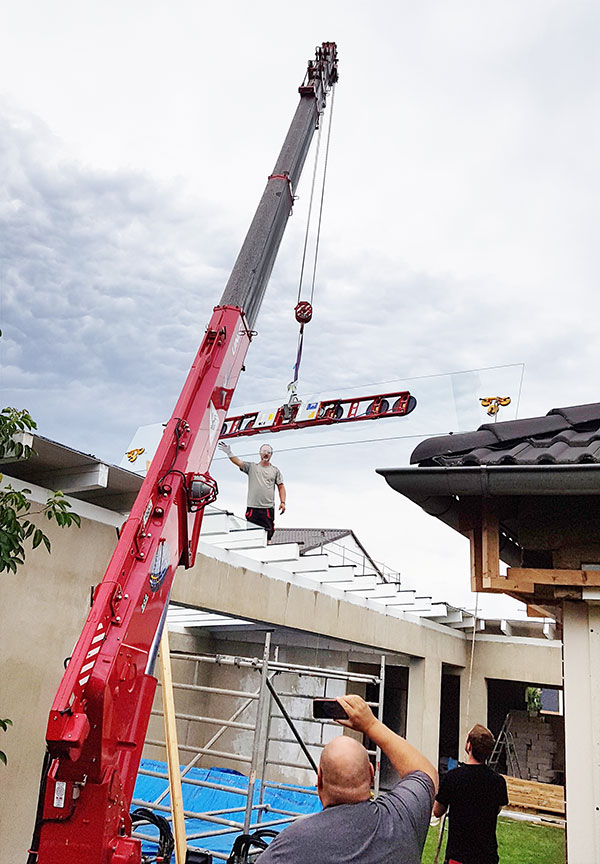

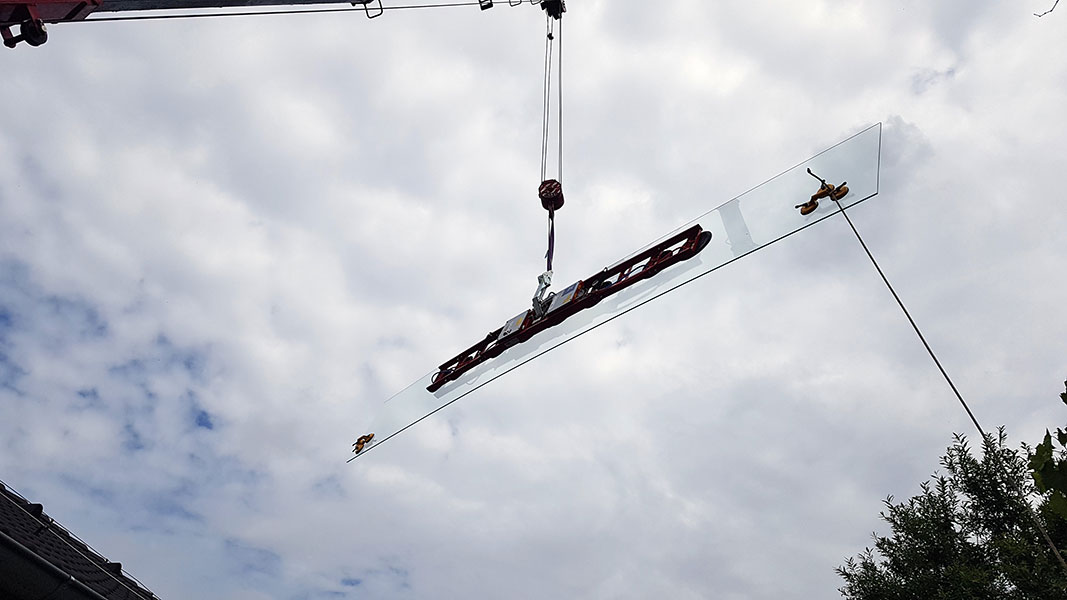

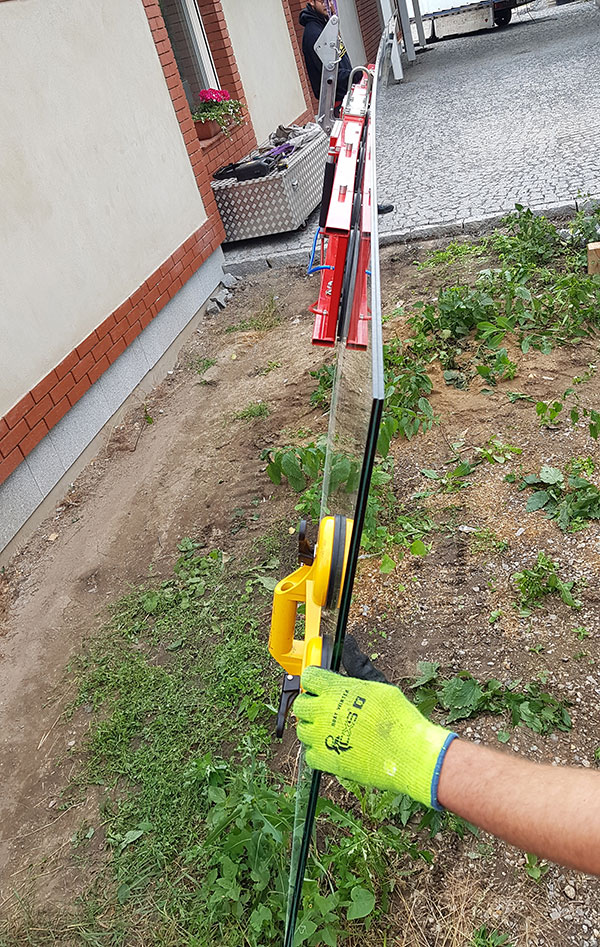

Use of OKTOPUS® GLASS-Jack GL-LN 600
