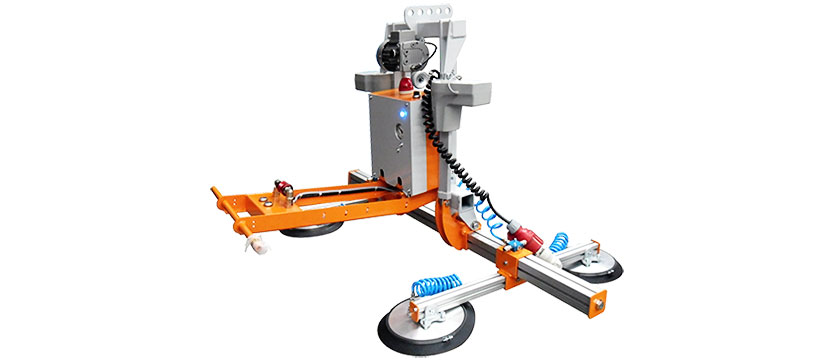

Vacuum lifting device for shop floor operation for lifting and tilting flat glass with a maximum weight of 250 kg

Single circuit system

  • 1 vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for shop floor operation according to DIN EN 13155 and DIN EN 13035


Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.


indoor crane, X-Y lightweight cranes, column and wall slewing cranes


with adjustable crane eye at the crane hook

Power supply

230 V AC, 400 V AC, 24 V (battery system) DC, compressed air

Material to be lifted

flat glass, windows

  • Working Load Limit:up to 250 kg
    Suction frame typespreader beam: main girder with 2 shifting cross beams
    Weightapprox. 120 kg
    Suction pads4 suction pads Ø 280 mm for flat glass panes
    Vacuum generationelectric vacuum pump
    Operationvacuum generation: hand slide valve on the device
    tilting: buttons on the device
    Vacuum systemsingle circuit for shop floor operation
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply230 V AC
    Optional facilities- alternative power supply: 400 V AC, 24 V (battery system) DC, compressed air
    - variable number of suction pads and cross beams
    - blow-off function
    - operation vacuum generation with buttons
    - integration of chain hoist control (ABUS)
    Optional equipment
    retainer for pendant control panel
    - battery charger (with battery system)
    Lifting/Loweringby crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Tilting suction frameelectrically, 0-90°; alternative pneumatically, 0-90°


  • Crane attachment
  • Fork lift attachment
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air
