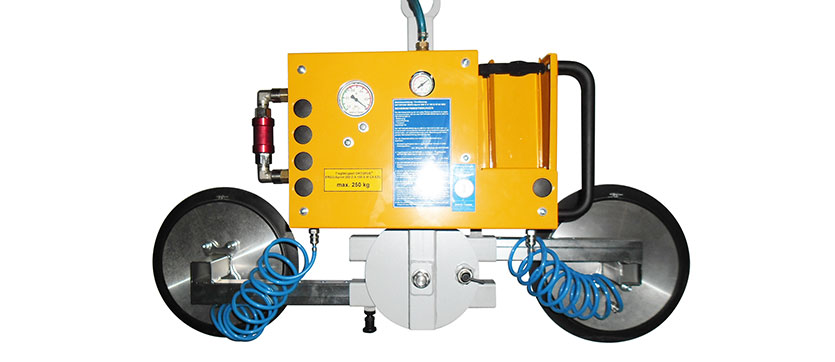

Vacuum lifting device for shop floor operation for lifting and tilting flat glass with a maximum weight of up to 250 kg

Single circuit system

  • 1 vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for shop floor operation according to DIN EN 13155 and DIN EN 13035


Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.


indoor crane, X-Y lightweight cranes, column and wall slewing cranes


with adjustable crane eye at the crane hook

Power supply

230 V AC, 400 V AC, 24 V (battery system) DC, compressed air

Material to be lifted

flat glass, windows

  • Working Load Limit:up to 250 kg
    Suction frame typeFrame consisting of a main core and four shifting beams with attached suction pads
    Weightapprox. 25 kg
    Suction pads2 suction pads Ø 300 mm for flat glass panes
    Vacuum generationcentrally arranged, unregulated ejectors
    Operationvacuum generation: with safety hand slide valve
    Vacuum systemsingle circuit for shop floor operation
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supplycompressed air400 V AC
    Optional facilities- alternative power supply: 400 V, 230 V AC, 24 V DC, compressed air
    - variable type and number of suction pads
    - blow-off function
    - energy saving function (vacuum controlled)
    - operation vacuum generation with buttons
    - integration chain hoist control (ABUS)
    Optional equipmentsuction pads extensions
    Lifting/Loweringby crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotating suction framemanually 0-180°


  • Crane attachment
  • Fork lift attachment
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air
