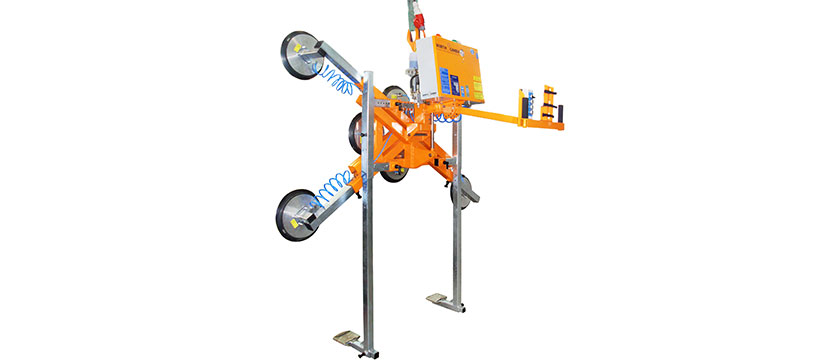

Vacuum lifting device for shop floor operation for lifting and tilting flat glass with a maximum weight of up to 1000 kg

Single circuit system

  • 1 vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for shop floor operation according to DIN EN 13155 and DIN EN 13035

Use

Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

indoor crane, X-Y lightweight cranes, column and wall slewing cranes

Suspension

with adjustable crane eye at the crane hook

Power supply

230 V AC, 400 V AC, 24 V (battery system) DC, compressed air

Material to be lifted

flat glass, windows


  • Working Load Limit:up to 1000 kg
    Suction frame typelarge design, X-shaped, with telescopic extensions
    Weightapprox. 210 kg
    Suction pads8 suction pads Ø 400 mm for flat glass panes
    Vacuum generationelectric vacuum pump
    Operationall functions: with buttons on the device
    Vacuum systemsingle circuit for shop floor operation
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply400 V AC
    Optional facilities- alternative power supply: 230 V AC, 24 V (battery system) compressed air
    - variable type and number of suction pads
    - blow-off function
    - operation vacuum generation with buttons
    - integration chain hoist control (ABUS)
    Optional equipment- height-adjustable bracket to prevent the sliding of freshly sealed insulating glass
    - pendant control panel holder
    Movements
    Lifting/Loweringby crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Tilting suction frameelectrically 0°-90°, alternative manually 0-90°, pneumatically 0°-90°

Legend

  • Crane attachment
  • Fork lift attachment
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air

OKTOPUS® ERGO-Sprint
