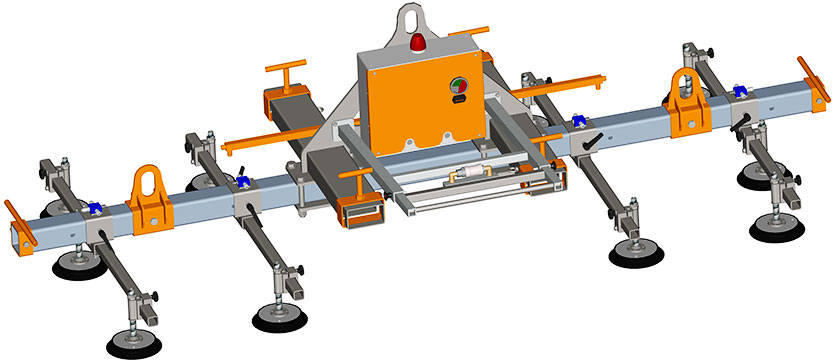

For horizontal handling of metal sheets and other suitable materials up to a maximum weight of 1000 kg within closed rooms

Working Load Limit:1000 kg horizontal
Suction frame type:boom consisting of one main girder and at least two shifting cross beams
Suctioning:10 suction pads Ø250, horizontal
Hoist:crane / chain hoist | forklift
Vacuum system:single circuit
Power supply:battery system 24 V
Operation:safety hand slide valve for Suction/Release
energy saving system (vacuum controlled)
Monitoring:vacuum gauge, signal light, emergency whistle
emergency whistle indicating energy breakdown
Options:telescopic arms
radio remote control
electrical control system for Suction/Release
250 kg | 500 kg | 1000 kg | 1500 kg
pendant control panel
