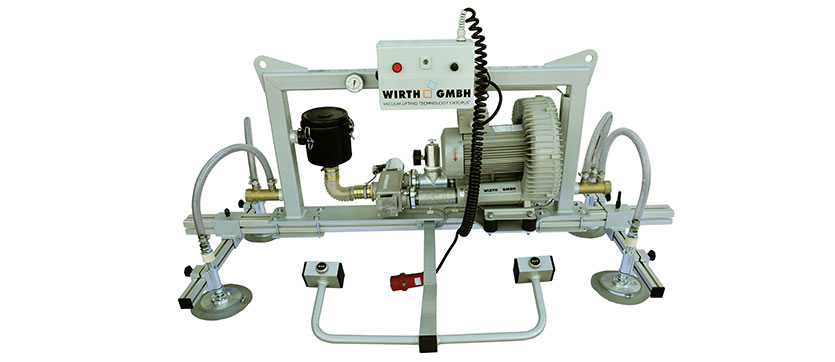

For safe transport of large-sized elements with rough or porous surfaces inside closed rooms

Working Load Limit:100 kg
Suction frame type:boom consisting of one main girder and at least two shifting cross beams
Suction frame:horizontal
Hoist:crane / chain hoist
Suctioning:4 suction pads Ø200, horizontal
Vacuum system:single circuit
Power supply:400 V AC
Operation:electrical control system for Suction/Release
automatic energy saving function (vacuum controlled)
Monitoring:vacuum gauge, signal light, emergency whistle
emergency whistle indicating energy breakdown
Options:- telescopic arms
- battery system | compressed air | electrical control system for Suction/Release

Legend

  • Crane attachment
  • Fork lift attachment
  • Handling horizontally
  • Handling vertically
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air

Sheet metal wood
