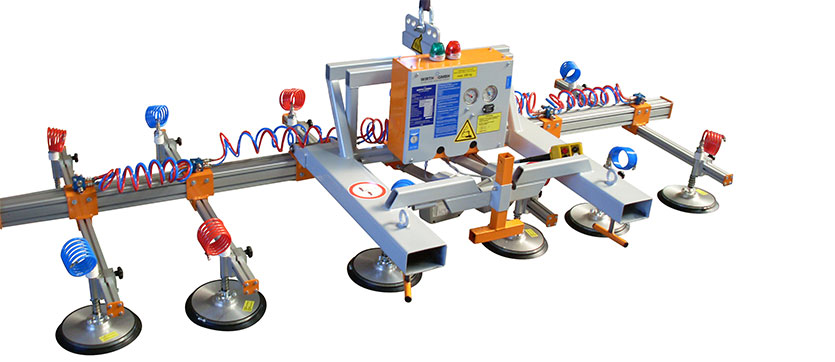

For horizontal handling of metal sheets and other suitable materials

Working Load Limit:500 kg horizontal / vertical
Suction frame type:boom consisting of one main girder and at least two shifting cross beams
Hoist:crane / forklift
Suction Pad:12 suction pads Ø 200 mm
Tilting:electrical 90°
Vacuum system:single circuit
Power supply:24 V battery system
Operation:pendant control panel
Monitoring:vacuum gauge, signal light, emergency whistle
emergency whistle indicating energy breakdown
Options:radio remote control

Legend

  • Crane attachment
  • Fork lift attachment
  • Handling horizontally
  • Handling vertically
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air

Sheet metal wood
