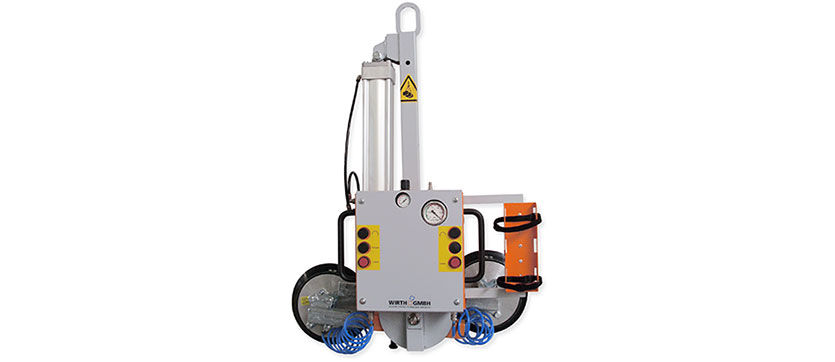

Working Load Limit:250 kg vertically
Suction frame type:boom consisting of one main girder and at least two shifting cross beams
Suction:2 suction pads vertically
Hoist:crane / chain hoist
Rotating:180°, manual | pneumatic | electrical
Vacuum system:single circuit
Power supply:compressed air | electrical 230 V / 400 V | battery system 24 V
Operation:safety hand slide valve for Suction/Releasee
Monitoring:vacuum gauge
emergency whistle indicating energy breakdown
Options:automatic energy saving function (vacuum controlled)
pendant control panel retainer
variable load centering
operation with buttons (supports rotation)
integration chain hoist control (ABUS)

Legend

  • Crane attachment
  • Fork lift attachment
  • Handling horizontally
  • Handling vertically
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air

Sheet metal wood
