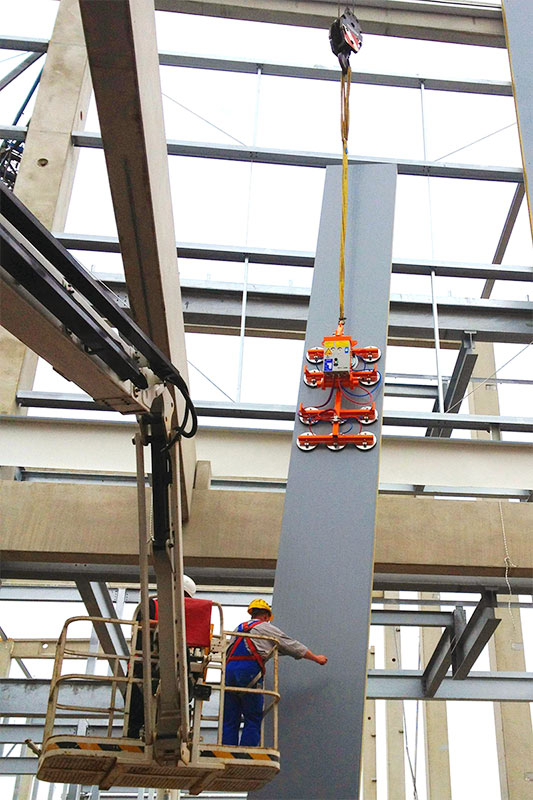

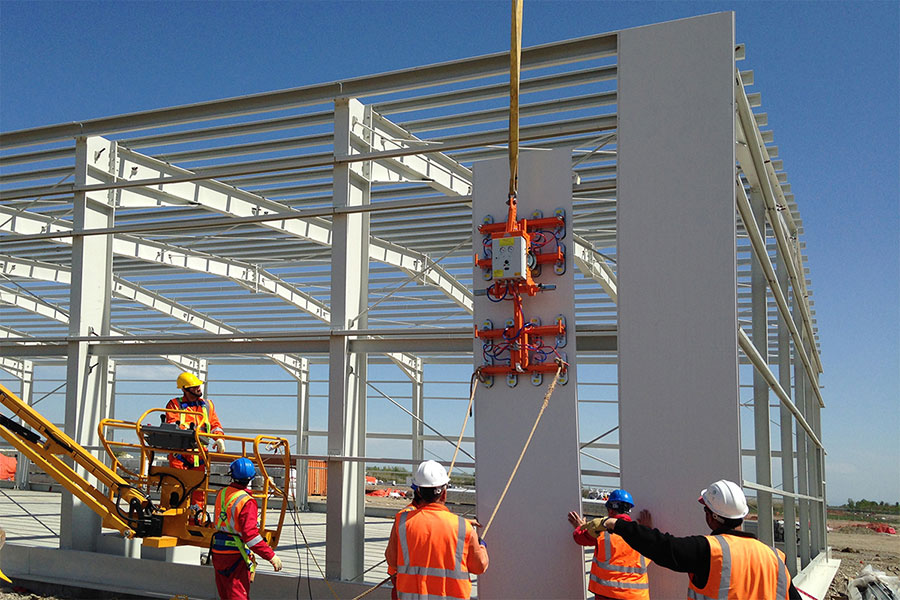

For the installation of horizontal and vertical wall elements as well as for installing roof elements

Dual circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated reserve vacuum
  • for construction site use according to DIN EN 13155

Application

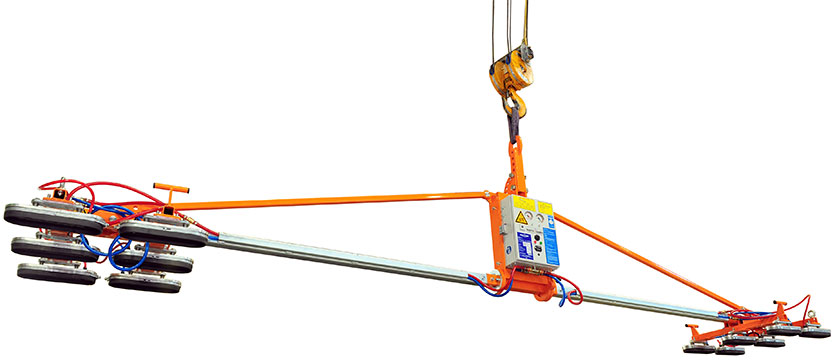

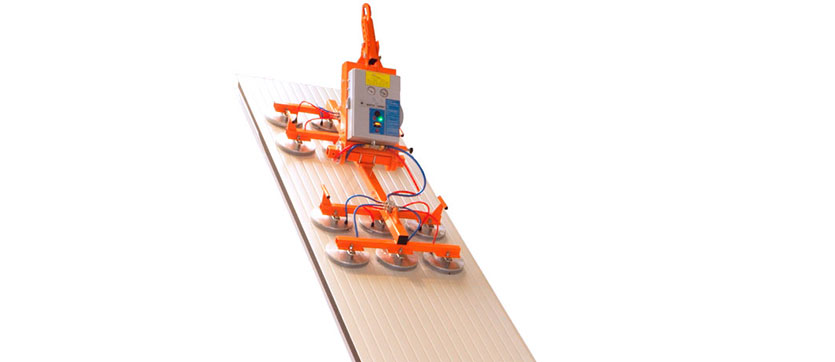

  • suitable for horizontal and vertical installation of wall elements as well as the installation of roof elements of up to 16 m in length (with extensions mounted).

Hoist

  • e. g. truck-mounted crane, top slewing crane

Suspension

  • adjustable crane eye at the vacuum unit

Equipment

  • transport and storage box
  • transport cart
  • transport palette
  • safety belts
  • protective caps

Options

  • suction bridge short

Material to be handled
Using the tried and tested Wirth round and oval suction pads, or the two-chamber rectangular suction pad, you can transport and install almost every standard sandwich element and many corrugated sheets with the OKTOPUS® PANEL-Jack KS-B. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.


  • Suction pads Max. working load limit depending on the type of suction pad and the inclination (α) of the elements to be installed
    0° ≤ α ≤ 10° 10° < α ≤ 90°
    8 round suction pads (∅ 250 mm) 350 kg 250 kg
    12 round suction pads (∅ 250 mm) 400 kg 400 kg
    8 oval suction pads (100 mm x 320 mm) 200 kg 130 kg
    12 oval suction pads (100 mm x 320 mm) 300 kg 200 kg
    16 oval suction pads (100 mm x 320 mm) 400 kg 260 kg

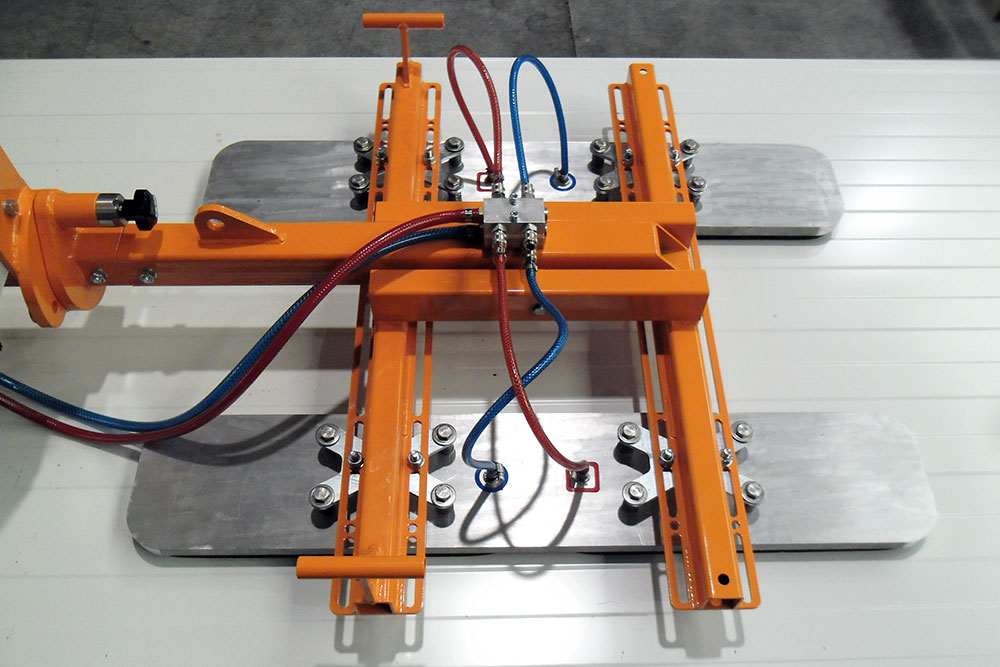

    4 two-chamber rectangular suction pads (980 x 180 mm) 400 kg 400 kg
  • Weight:depending on the equipment 145 to 250 kg
    Operation:control panel on the device
    Power supply:rechargeable battery, 24 V
    Vacuum generation:vacuum pump
    Suction pads:Wirth standard suction pads
    - round suction pads (ø 250 mm) or
    oval suction pads (100 mm x 320 mm)
    two-chamber rectangular suction pad (980 x 180 mm)
    Equipment:- transport and storage box
    - transport cart
    - transport palette
    - safety belts
    - protective caps
    Options:suction bridge short

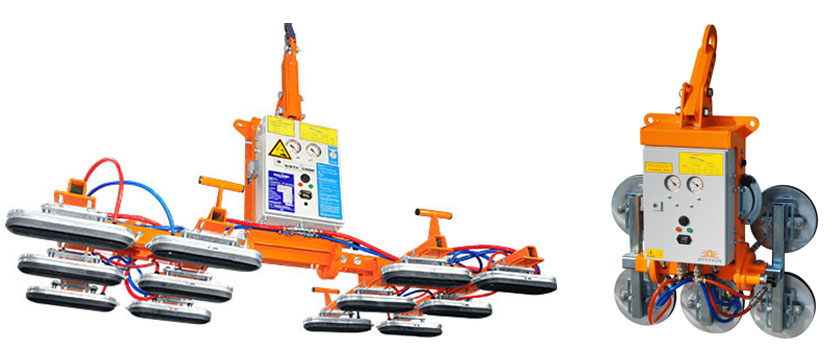

Use of OKTOPUS® KS-B 400

Legend

  • Crane attachment
  • Fork lift attachment
  • Vertical wall installation

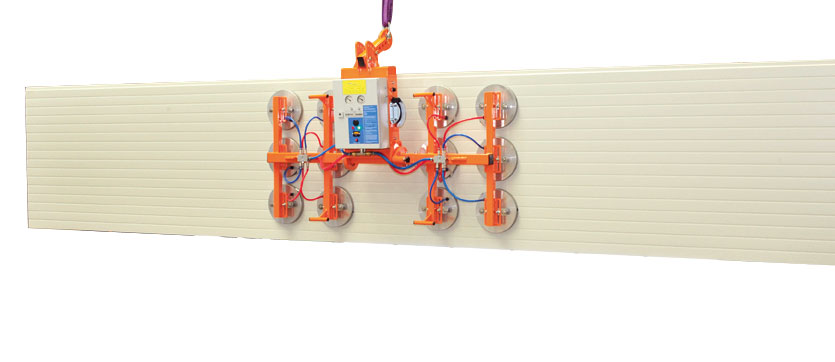

  • Horizontal wall installation
  • Roof installation
  • Overhead installation
  • Rotate 360°
  • Tilt around horizontal axis
  • Turn-over ≥ 180°
  • Tilt around vertical axis (swivel)
  • Side stroke
  • Teleskop. Ausleger/ Kranarm/Hubsäule
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Battery
