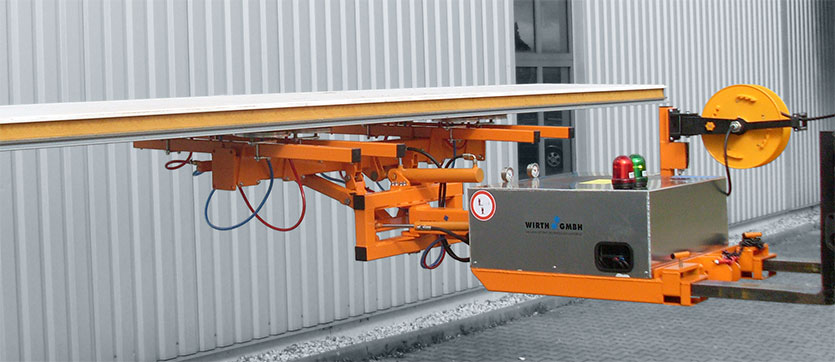

Suitable for installing wall elements horizontally, for installing ceiling elements and for turning over construction elements.
Dual circuit system
- 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated reserve vacuum
- for construction site use according to DIN EN 13155
Application
- Suitable for installing wall elements horizontally, for installing ceiling elements and for turning over construction elements.
Hoist
- forklift
Suspension
- fork sleeve
Material to be handled
Using the tried and tested Wirth round and oval suction pads you can transport and install almost every standard sandwich element and many corrugated sheets with the OKTOPUS® PANEL-Jack IT-B. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.
-
8 round suction pads (∅ 250 mm) max. 250 kg 12 round suction pads (∅ 250 mm) max. 400 kg 8 oval suction pads (100 mm x 320 mm) max. 130 kg 12 oval suction pads (100 mm x 320 mm) max. 200 kg
-
Weight approx. 620 kg Operation control panel connected via cable to the device Power supply 24 V battery Vacuum supply vacuum pump Options radio remote control Movements Tilt around vertical axis (swivel) 120° Turn over 180°
Datasheet PANEL-Jack IT-B
Crane attachment
Vertical wall installation
Roof installation
Rotate 360°
Side stroke
Teleskop. Ausleger/ Kranarm/Hubsäule
Manual operation
