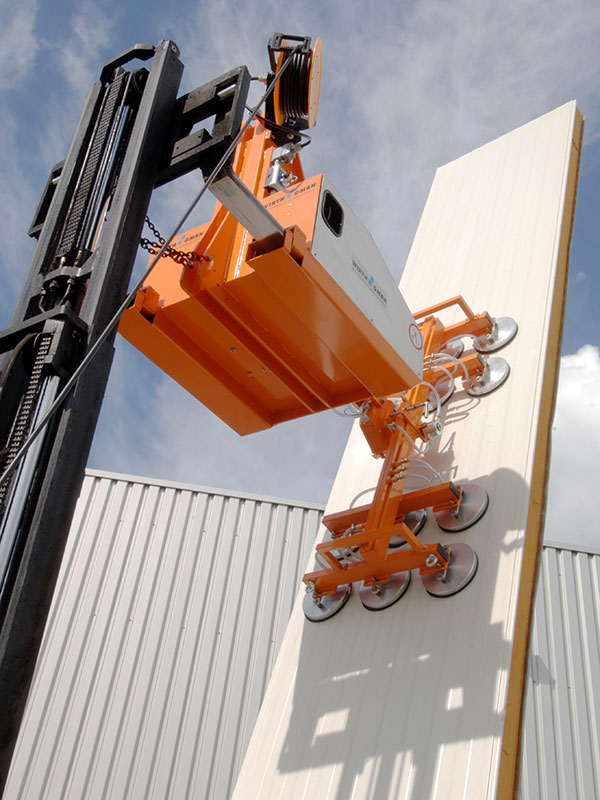

OKTOPUS® PANEL-Jack GI-B400 (hor)

Forklift attachment with integrated hydraulic functions for installing wall elements horizontally and vertically as well as installing ceiling elements

Dual circuit system

2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated reserve vacuum
for construction site use according to DIN EN 13155

Application

horizontal and vertical installation of wall elements for industrial and cold room constructions
installation of ceiling elements of up to 8 m in length

Hoist

forklift

Equipment

safety belts
protective caps

Options

radio remote control

Material to be handled
Using the tried and tested Wirth round and oval suction pads you can transport and install almost every standard sandwich element and many corrugated sheets with the OKTOPUS® PANEL-Jack GI-B 400. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.

Working Load Limit

Device / suction pads	Working Load Limit
8 round suction pads (ø 250 mm)	250 kg
12 round suction pads (ø 250 mm)	400 kg
8 oval suction pads (100 mm x 320 mm)	130 kg
12 oval suction pads (100 mm x 320 mm)	200 kg

Application data

Weight:	approx. 600 kg
Operation:	control panel connected via cable to the device
Power supply:	battery, 24 V
Vacuum generation:	vacuum pump
Suction pads:	Wirth standard suction pads - round suction pads (ø 250 mm) or - oval suction pads (100 mm x 320 mm)
Equipment:	- safety belts - protective caps
Options:	- radio remote control - suction bridge 5 m
