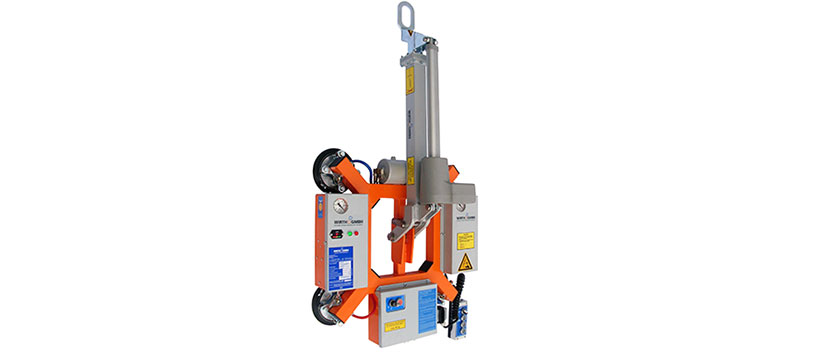

Vacuum lifter for construction site use with manual tilting function and motor-driven height-adjustable crane eye

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.

Hoist

crane

Fastening

  • at the crane hook

Description

The vacuum based load lifting attachment OKTOPUS GL-R 65 S So 010 R E B24 P is designed to handle large-sized glass panes and window elements with a maximum weight of up to 65 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The suction frame can manually be rotated by 90°. The crane eye can electrically be height adjusted for vernier adjustment, which allows very precise positioning and placing of the suctioned element.

The operating and display elements are arranged ergonomically and allow comfortably positioning the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.


  • Device / Suction padsmaximum Working Load Limit
    4 suction pads Ø 180 mmup to 65 kg
  • Weightapprox. 60 kg
    Suction pads4 pcs. Ø 180 mm
    Suction frame 520 mm x 520 mm
    Vacuum generationelectrical vacuum pump
    Operationcable remote control
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    - radio remote control
    Optional equipment- technical documentation
    - built-in battery charger
    - transport box
    Movements
    Lifting and loweringby the crane hook,
    vernier adjustment with electrical lifting cylinder
    Rotating horizontallyin the crane hook, manually 360°
    Tilting the suction framemanually, 0-90°
