Vacuum lifting device for handling large-sized flat and curved glass elements

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling flat and curved glass panes on construction sites (radius ≥ 1.5 m)

Hoist

  • crane

Fastening

  • at the crane hook

Description

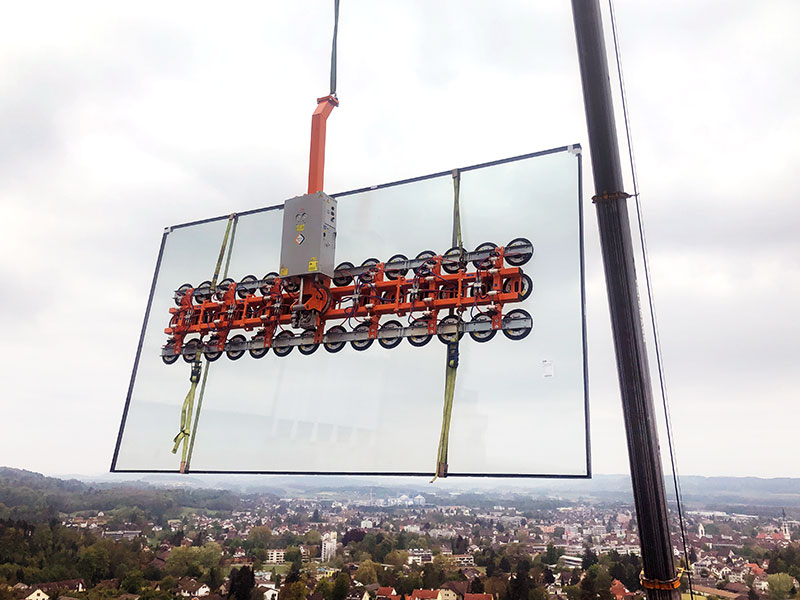

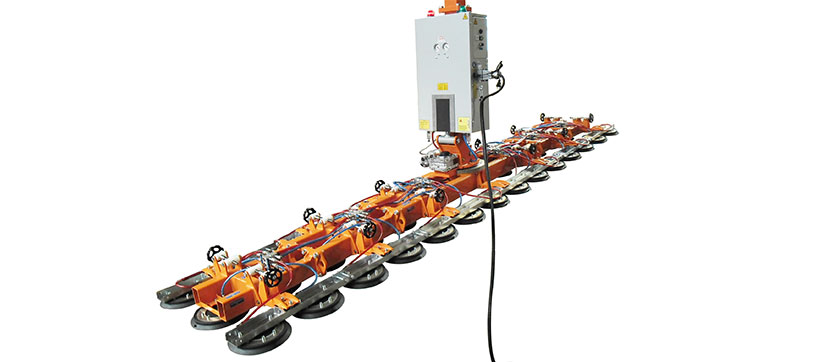

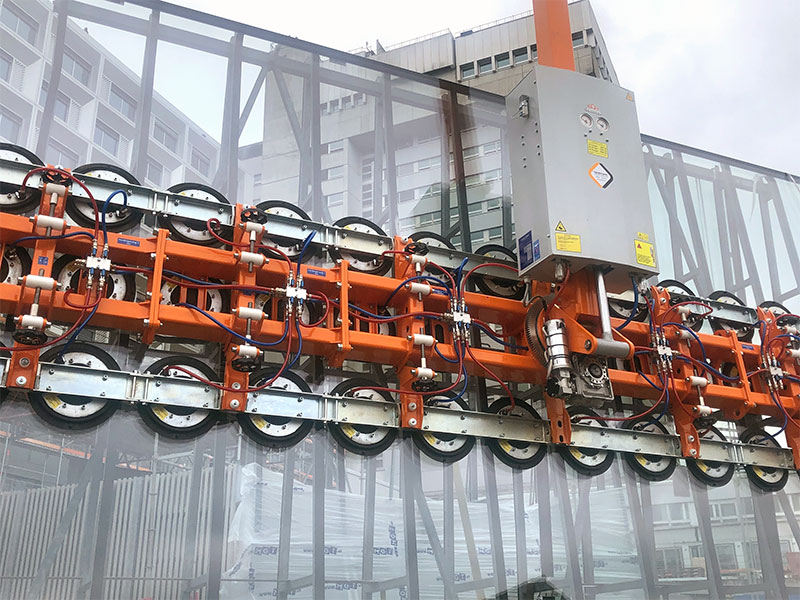

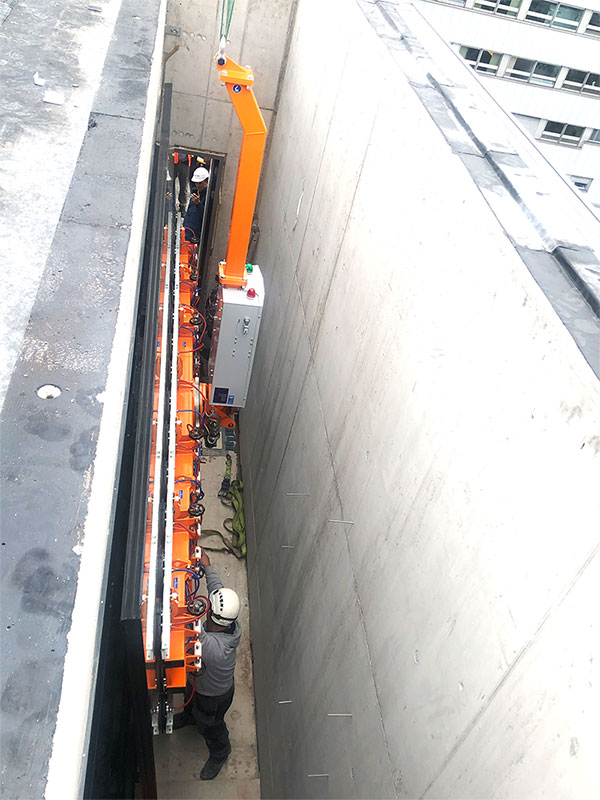

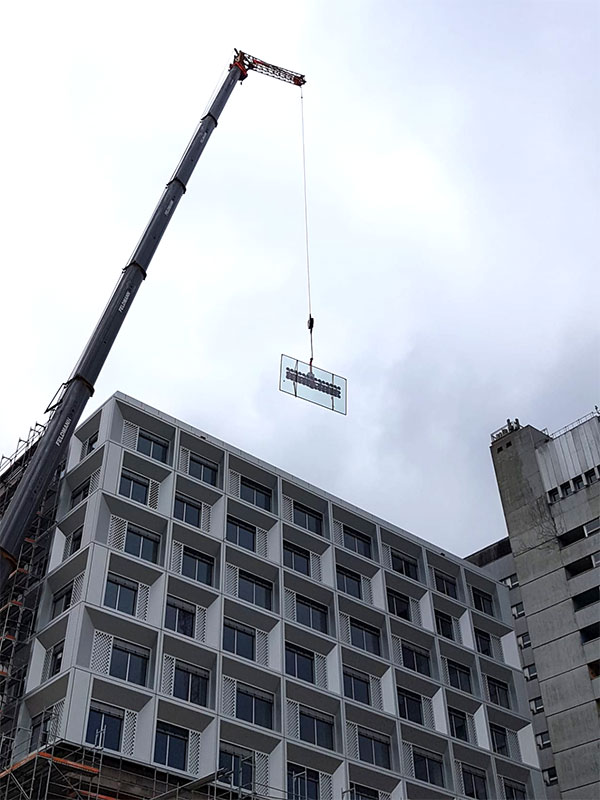

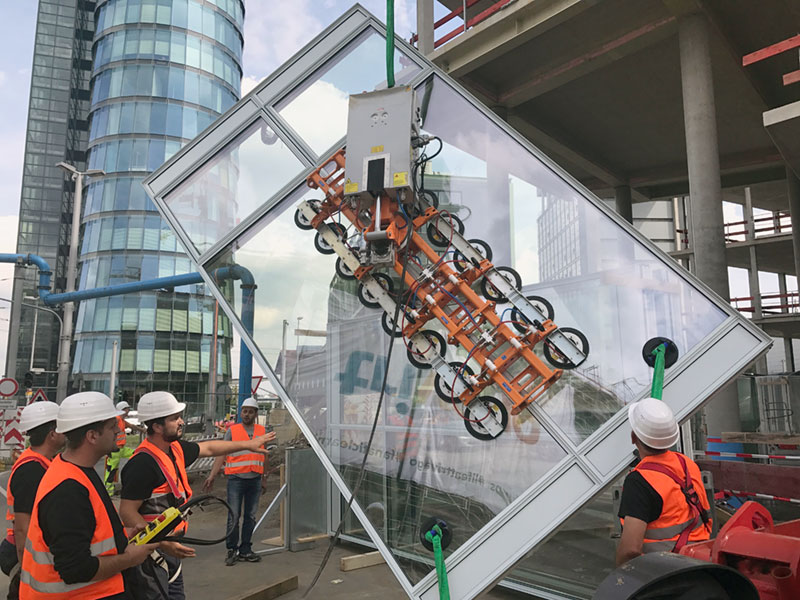

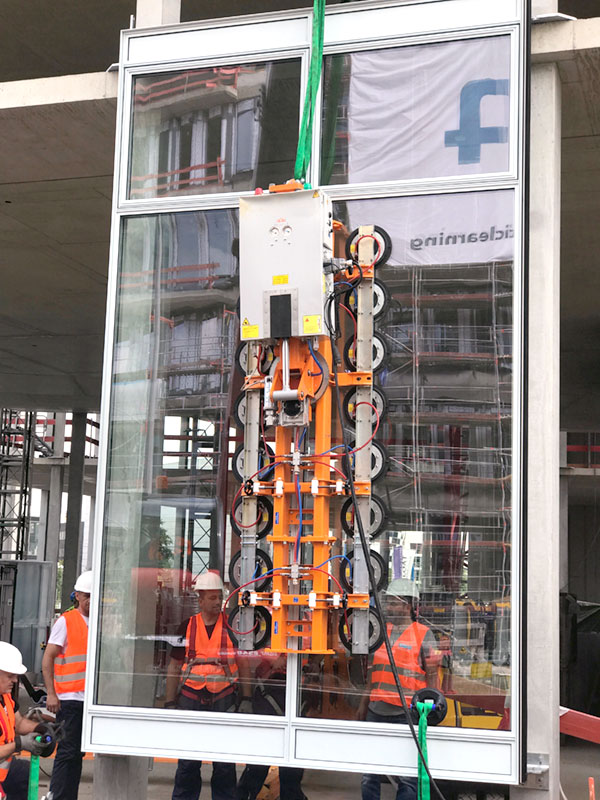

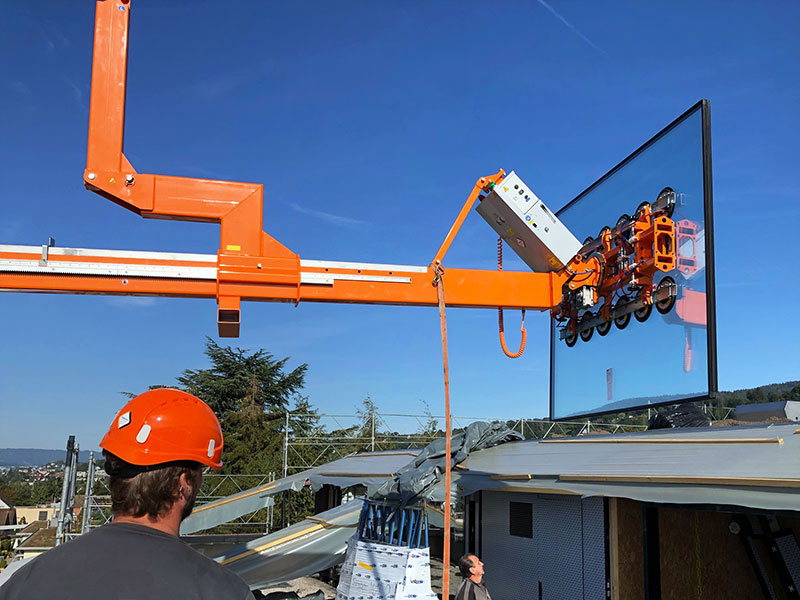

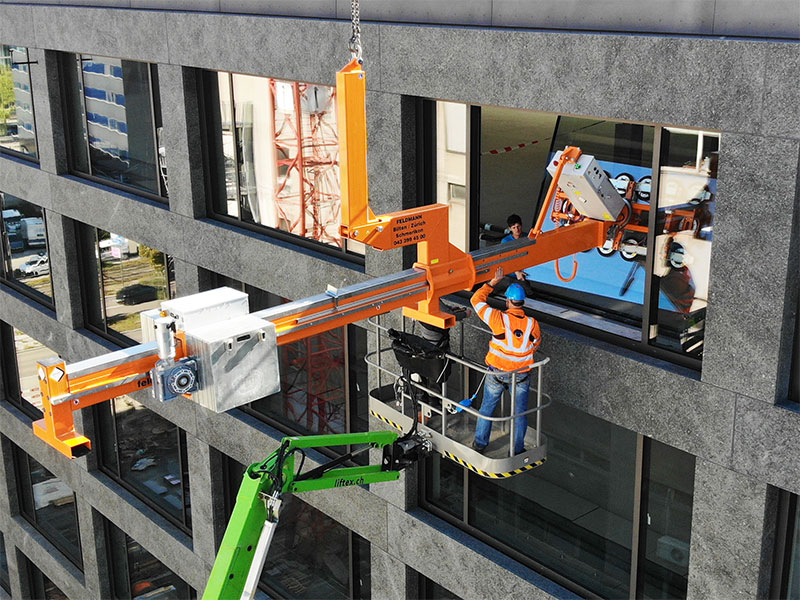

The vacuum based load lifting device OKTOPUS® GL-MGS 2000 is designed to handle glass panes and window elements up to a maximum weight of 2000 kg on construction sites.

The suction frame can be tilted hydraulically by 90° and rotated electrically driven by 360°. All functions are operated with a cable remote control (optional radio remote control). The necessary negative pressure in the suction pads is generated by a 24 V DC operated vacuum pump.

To improve the releasing behavior of the glass pane, the device is equipped with a blow-off function. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.

Material to be handled

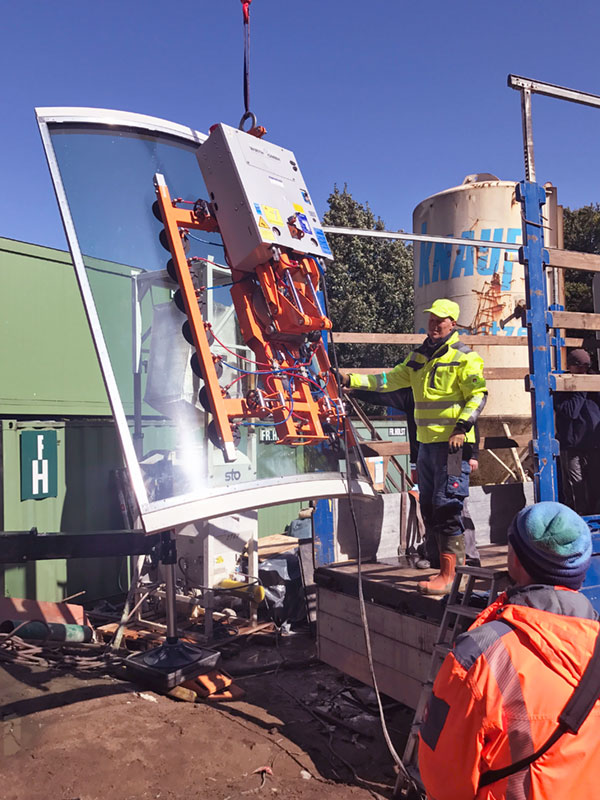

The OKTOPUS® GL-MGS 2000 is suitable for handling flat glass panes, curved glass panes (concave or convex, bending radius ≥ 1.5 m) and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.


  • Device / Suction padsmaximum Working Load Limit
    16 suction pads ∅ 280 mmup to 800 kg
    28 suction pads ∅ 280 mmup to 1,400 kg
    40 suction pads ∅ 280 mmup to 2,000 kg
  • Weightapprox. 340 kg without extensions
    approx. 520 kg with extensions
    Suction pads40 pcs. Ø 280 mm
    Suction frame1,930 * 1,000 mm with 16 suction pads, Working Load Limit up to 800 kg
    3,250 * 1,000 mm with 28 suction pads, Working Load Limit up to 1,400 kg
    4,570 * 1,000 mm with 40 suction pads, Working Load Limit up to 2,000 kg
    Vacuum generationelectrical vacuum pump
    Operationcabel remote control
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- transport rack
    - radio remote control
    Optional equipment- technical documentation
    - built-in battery charger
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotation of the suction frameelectrically driven 360°
    Tilting the suction framehydraulically 90°


Use of OKTOPUS® GL-MGS 2000

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
