Vacuum lifter for construction site use with electrically driven rotating and hydraulically tilting function

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155


Handling flat glass panes and window elements. The suction areas of the loads to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.


  • crane


  • at the crane hook

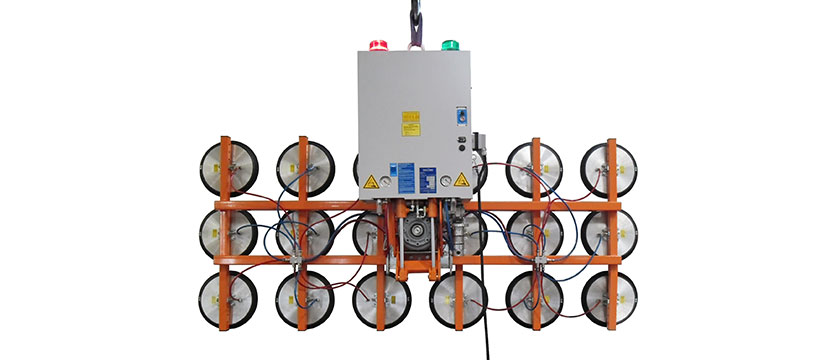

The vacuum based load lifting attachment OKTOPUS® GL-M 1500 DES So 530 R E B24 P is designed for handling large-sized glass panes and window elements up to a maximum weight of 1,500 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The device is equipped with 2 different suction frames which can be changed by a quick change system. This device can be used to lift, transport and install narrow long panes (e.g. so called glass fins) as well as large-sized rectangular panes. The glass panes can be rotated electrically driven by 360° endless and tilted hydraulically by 90°. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in case of complete energy breakdown, vacuum remains for at least 5 minutes in each suction pad. In this way a secure lowering of the load can be ensured at all times.

  • Device / Suction padsmaximum Working Load Limit
    6 suction pads Ø 400 mmup to 480 kg (flat glass)
    10 suction pads Ø 400 mmup to 800 kg (flat glass)
    18 suction pads Ø 400 mmup to 1,000 kg (flat glass)
  • Weightdepending on the equipment ca. 395 kg - 445 kg
    Suction pads18 pcs. Ø 400 mm
    Suction frame type 13,000 mm x 1,600 mm (18 suction pads; Working Load Limit 1500 kg)
    Suction frame type 22,900 mm x 400 mm (6 suction pads; Working Load Limit 480 kg)
    4700 x 400 (10 suction pads; Working Load Limit 800 kg)
    Vacuum generationelectrical vacuum pump
    Operationcable remote control 5 m
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    - radio remote control
    Optional equipment- transport cart
    - technical documentation
    - built-in charging device
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotating the suction frameelectrically driven 360° endless
    Tilting suction framehydraulically 90°
