Vacuum lifter for construction site use with electrically driven rotating and hydraulic tilting function

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155

Use

Handling of flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.

Hoist

  • crane

Fastening

  • at the crane hook

Description

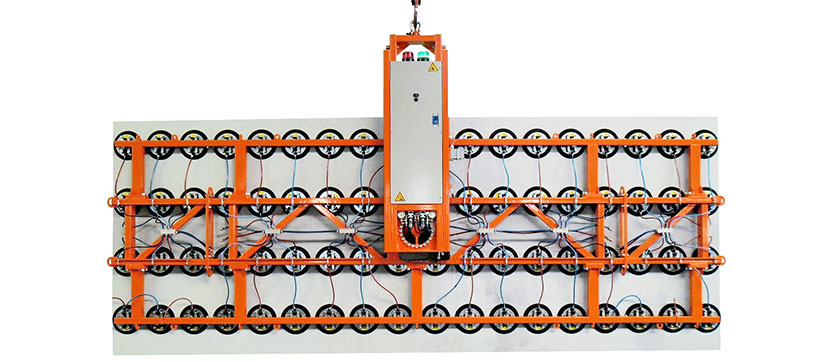

The vacuum based load lifting attachment OKTOPUS® GL-M 3500 DE So 400 R E B24 P is designed to handle large-sized glass panes and window elements up to a maximum weight of 3,500 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The suction frame can be rotated hydraulically by 360° endless. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load is ensured at all times.

The integrated blow-off function allows compressed-air supported and by that a quicker release of the suctioned load.


  • Device / Suction padsmaximum Working Load Limit
    72 suction pads ∅ 280 mmup to 3,500 kg
  • Weightdepending on the equipment approx. 560 kg
    Suction pads72 pcs. Ø 280 mm
    Suction frame4,000 mm x 860 mm (24 suction pads; Working Load Limit 1,150 kg)
    6,000 mm x 860 mm (36 suction pads; Working Load Limit 1,750 kg)
    4,000 mm x 2,000 mm (48 suction pads; Working Load Limit 2,300 kg)
    6,000 mm x 2,000 mm (72 suction pads; Working Load Limit 3,500 kg)
    Vacuum generationelectrical vacuum pump
    Operationcable remote control 5 m
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    - radio remote control
    Optional equipment- technical documentation
    - built-in charging device
    - transport rack
    Movements
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotating the suction frameelectrically driven 360° endless

Legend

  • Crane attachment
  • Mini crane manipulator
  • Fork lift attachment
  • For even glass panes
  • For curved glass panes
  • Rotate 360°
  • Rotate 90°/95°
  • Tilt around horizontal axis
  • Tilt around vertical axis (swivel)
  • Telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
