Vacuum lifter for construction site use with electrically driven rotating and hydraulically tilting function
- 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
- for construction site use according to DIN EN 13155
Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, must have an even and clean surface and must not be covered with protective film.
- at the crane hook

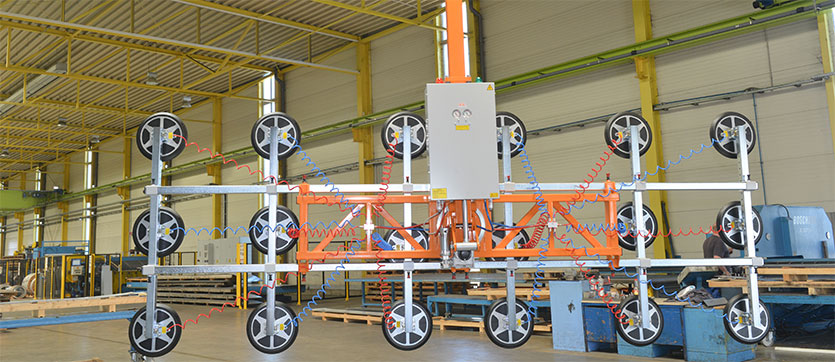

The vacuum based load lifting attachment OKTOPUS® GL-M 1800 DES So 530 R E B24 P is designed to handle large-sized glass panes and window elements up to a maximum weight of 1,800 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The suction frame can be rotated electrically driven by 360° endless and hydraulically tilted by 90°. The suction pads can be flexibly shifted into X and Y direction. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains for at least 5 minutes in each suction pad. In this way a secure lowering of the load can be ensured at all times.
Device / Suction pads maximum Working Load Limit 18 suction pads Ø 400 mm up to 1,800 kg
Weight depending on the equipment approx. 445 kg Suction pads 18 pcs. Ø 400 mm Suction frame suction pads flexibly shifting in X and Y direction
max. 5,100 mm x 1,900 mm (18 suction pads; Working Load Limit 1,800 kg)
Vacuum generation electrical vacuum pump Operation cable remote control 5 m Vacuum system dual-circuit vacuum system for construction site use Nominal pressure pneumatic system -0.65 bar to -0.73 bar Power supply 24 V DC battery system Optional facilities - blow-off function
- radio remote control
Optional equipment - transport cart
- technical documentation
- built-in battery charger
- transport rack
Movements Lifting and lowering by the crane hook Rotating horizontally in the crane hook, manually 360° Rotating the suction frame electrically driven 360° endless Tilting suction frame hydraulically 90°
