Vacuum lifter for construction site use with electrically driven rotating and hydraulic tilting function

Dual-circuit system

  • 2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
  • for construction site use according to DIN EN 13155


Handling flat glass panes and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective film.


  • crane


  • at the crane hook

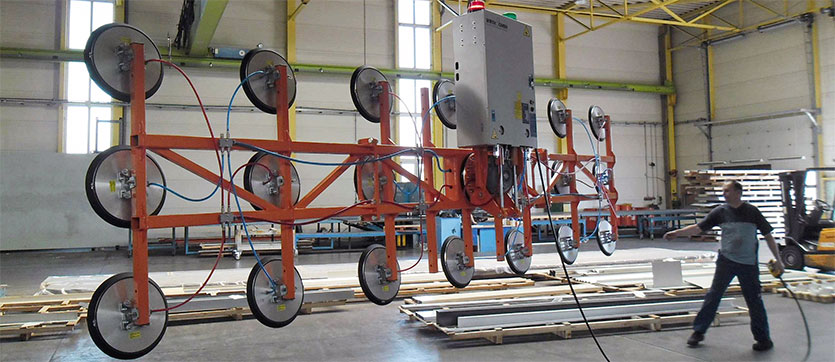

The vacuum based load lifting attachment OKTOPUS® GL-M 1600 DES So 530 R E B24 P is designed to handle large-sized glass panes and window elements up to a maximum weight of 1,600 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The crane eye of the device allows attaching the device to an existing hoist (provided by the customer). The suction frame can be rotated electrically driven by 360° endless and hydraulically tilted by 90°. The operating and display elements are arranged ergonomically and allow comfortably positioning and moving the load. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains for at least 5 minutes in each suction pad. In this way a secure lowering of the load can be ensured at all times.

  • Device / Suction padsmaximum Working Load Limit
    14 suction pads Ø 400 mmup to 1,500 kg
    20 suction pads Ø 400 mmup to 1,600 kg
  • Weightdepending on the equipment approx. 425 kg - 540 kg
    Suction pads20 pcs. Ø 400 mm
    Suction framebasic version: 2,130 mm x 1,600 mm (14 suction pads; Working Load Limit 1150 kg)
    full version: 6,000 mm x 1,600 mm (20 suction pads; Working Load Limit 1,600 kg)
    Vacuum generationelectrical vacuum pump
    Operationcable remote control 5 m
    Vacuum systemdual-circuit vacuum system for construction site use
    Nominal pressure pneumatic system-0.65 bar to -0.73 bar
    Power supply24 V DC battery system
    Optional facilities- blow-off function
    - radio remote control
    Optional equipment- technical documentation
    - built-in battery charger
    Lifting and loweringby the crane hook
    Rotating horizontallyin the crane hook, manually 360°
    Rotating the suction frameelectrically driven 360° endless
    Tilting suction framehydraulically 90°
    Swiveling suction bridge:hydraulically ± 20°
