OKTOPUS® GLASS-Jack GL-CC600 (f)


Manipulator for handling large-sized glass elements together with a mini crane or telescopic forklift (telehandler)

Dual-circuit system

2 independent vacuum circuits, each vacuum circuit with 2-fold safety and integrated vacuum reservoir
for construction site use according to DIN EN 13155

Use

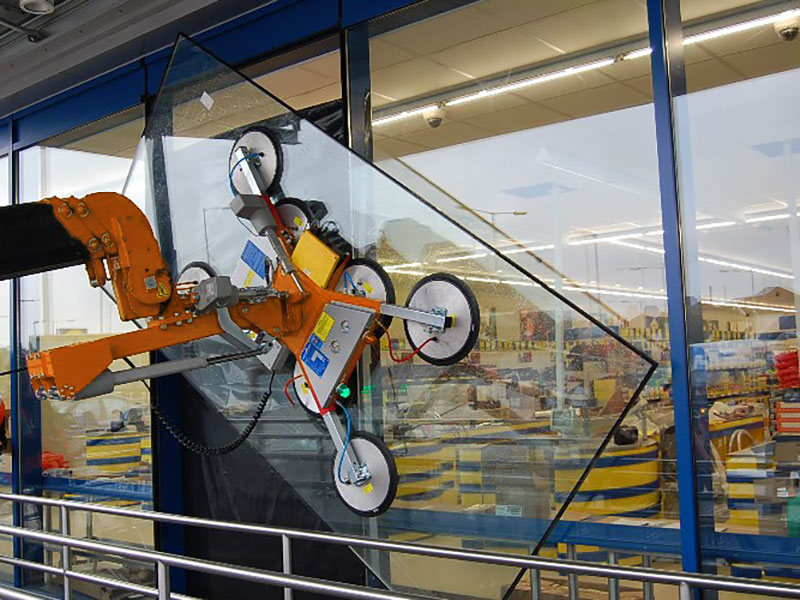

The OKTOPUS® GLASS-Jack GL-CC 600 DES is suitable for handling flat and curved panes (concave or convex, bending radius ≥ 2 m) and window elements. The suction areas of the elements to be lifted must be air-impermeable, have to have an even and clean surface and must not be covered with protective foil.

Hoist

Mini crane, truck loader crane, telescopic forklift (telehandler)

Fastening

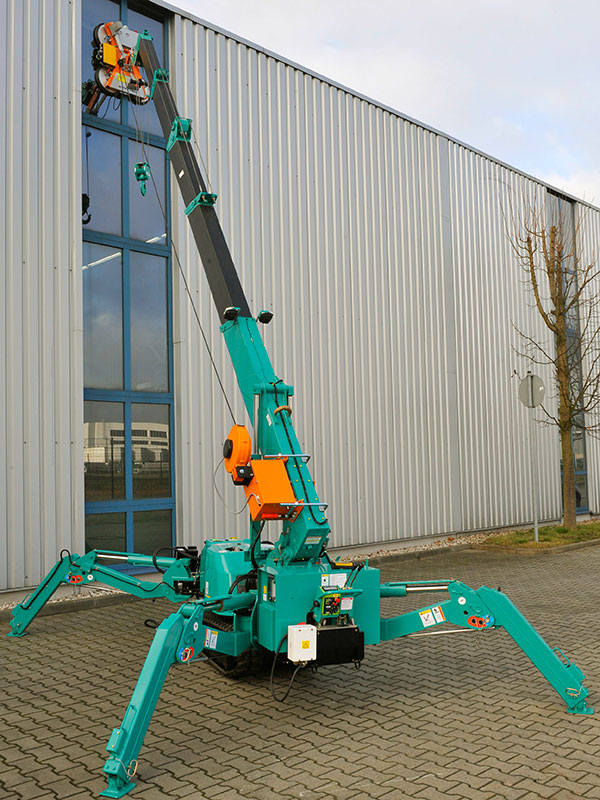

interchangeable adapter to be connected to the booms of different mini cranes (Jecko, Maeda, Unic et al.) and truck loader cranes
adapter with integrated, hoist-independent movements for telescopic forklifts (telehandler, e.g. Manitou, Merlo et al.):
- hydraulic side shift (+/- 100 mm) and
- hydraulic telescopic boom (300 mm)

Description

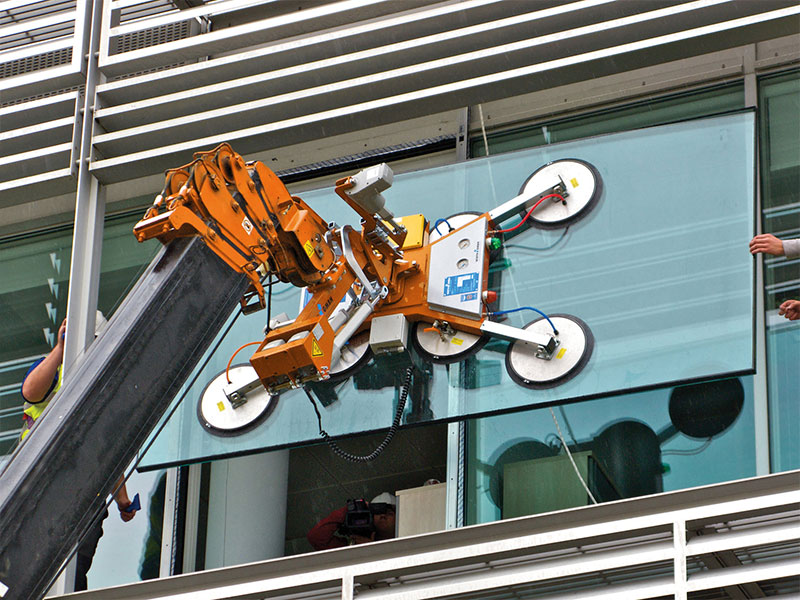

The vacuum based load lifting attachment OKTOPUS® GLASS-Jack GL-CC 600 DES is designed for handling glass panes and window elements up to a maximum weight of 600 kg. It is equipped with a dual-circuit vacuum system for construction site use according to DIN EN 13155. The electrically operated vacuum pump is supplied with energy by a 24 V DC battery system. The quick change battery box allows exchanging the batteries within a few seconds.

Deviations from the nominal condition are indicated by optical and acoustical warning devices. Even in the case of complete energy breakdown, vacuum remains in each suction pad for at least 5 minutes. In this way a secure lowering of the load can be ensured at all times.

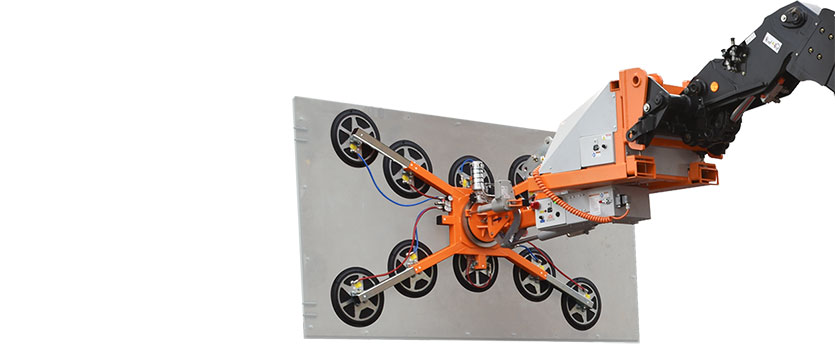

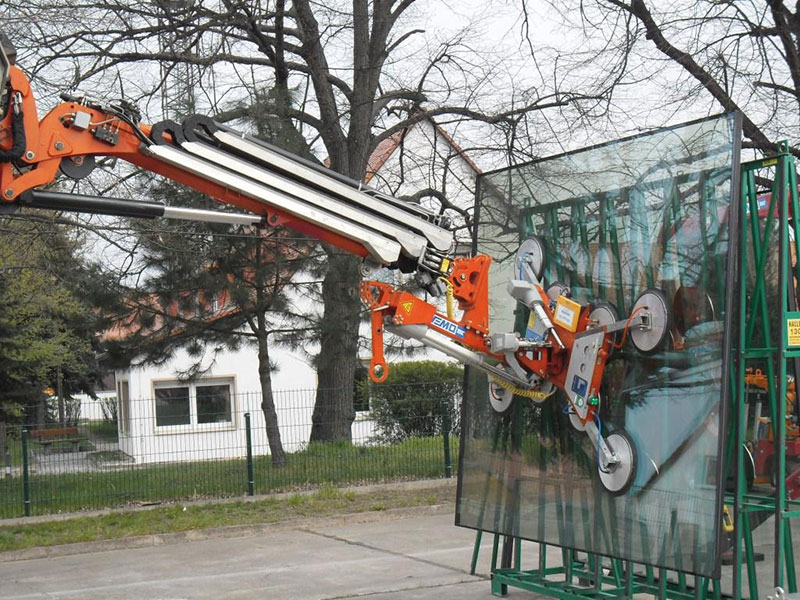

Specific adapters allow attaching the device to the boom of different mini cranes and truck loader cranes (provided by the customer) and allow by that glazing works in difficult to access areas. The suction frame can hydraulically be tilted by 120°, electrically rotated endless by 360° and swiveled electrically by ± 35°.

A special adapter with integrated hydraulic movements (independent of the hoist and the OKTOPUS(R) GL-CC 600 DES: side shift ± 100 mm left/right, telescopic boom 300 mm forward/backward) enables the OKTOPUS(R) GL-CC 600 DES to be used as an attachment for telescopic forklifts (telehandler).

All functions (both of the OKTOPUS® GL-CC 600 DES and the truck adapter) are operated with a radio remote control.

Working Load Limit

Device / suction pads	maximum Working Load Limit
flat glasses	4 suction pads, Ø 300 mm: up to 300 kg 8 suction pads, Ø 300 mm: up to 600 kg

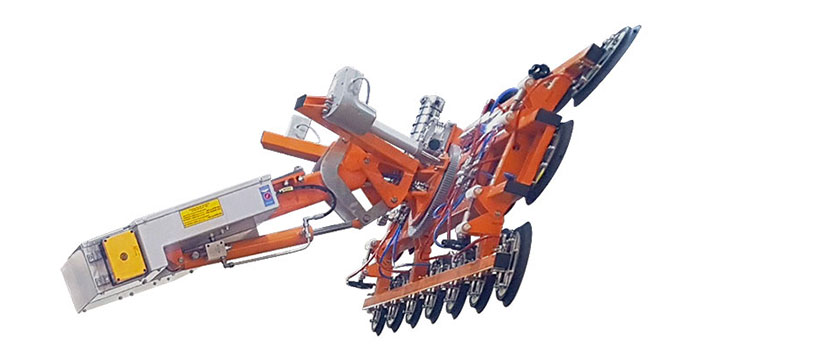

concavely curved panes (bending radius ≥ 2 m)	12 suction pads, Ø 280 mm: up to 600 kg
convexly curved panes (bending radius ≥ 2 m)	12 suction pads, Ø 280 mm: up to 450 kg

Application data

Weight	approx. 125 kg with suction frame for flat glasses, 4 pcs. suction pads Ø 300 mm approx. 145 kg with suction frame for flat glasses, 8 pcs. suction pads Ø 300 mm approx. 170 kg with suction frame for curved glasses, 12 pcs. suction pads Ø 280 mm

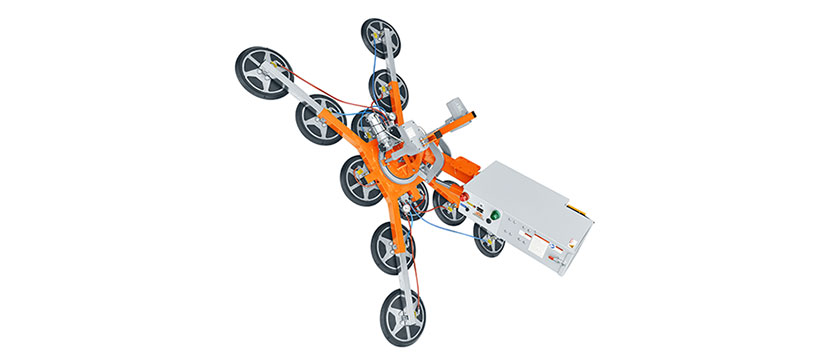

Suction pads	4 / 8 pcs. Ø 300 mm for flat glasses 12 pcs. Ø 280 mm for curved glasses
Suction frame	750 * 850 mm with 4 pads for flat glasses, WLL 300 kg 1,180 * 1,770 mm with 4 / 8 pads for flat glasses, WLL 300 / 600 kg 1,000 * 1,600 mm with 12 pads for flat glasses, WLL 300 / 600 kg
Vacuum generation	vacuum pump
Operation	radio remote control
Vacuum system	radio remote control
Power supply	battery quick change system, rechargeable battery, 24 V DC
Optional facilities	- connecting adapter for telescopic forklift (telehandler) - spare battery quick change box with battery charger - blow-off function
Optional equipment	- 2-fold speed control - 25 m cable reel
Movements
Lifting and lowering	by crane boom or telescopic forklift (telehandler)
Rotating suction frame	electrically, 360° endless
Tilting suction frame around horizontal axis	hydraulically, 120°
Swiveling suction frame around vertical axis (left/right)	electrically, ± 35°
In combination with fork truck adapter
Side shift (left/right)	± 100 mm
Telescopic main boom (forward/backward)	300 mm
