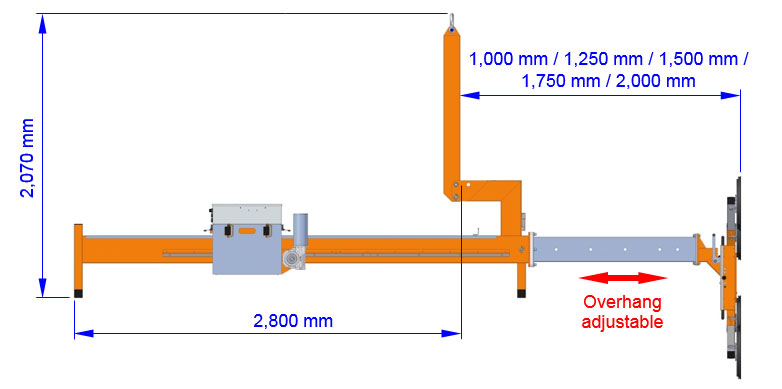

Load lifting attachment for lifting and positioning construction elements

Scope of application
The load lifting attachment counterweight balancer GGA-E-FB 1000/34/2,0 fulfills the requirements of DIN EN 13155. Together with load hook and slings (e.g. ropes, chains, belts etc.) it serves for lifting and positioning construction elements (e.g. those with integrated crane eye) in difficult to access areas (e.g. below eaves, balconies, stages etc.).
Connecting a tilting vacuum lifter of the series OKTOPUS® GL-KN 1000, GL-KN-F 1000, GL-RN-B 400/600/800 or GL-RN-F 400/600/800 to the counterweight balancer GGA-E-FB 1000/34/2,0 allows the installation of large-sized glass and facade elements in difficult to access areas.
Electrically driven counterweights allow balancing the loads.

Description



  • Counterweights34 pieces removable (1 counterweight = 25 kg)
    Operation- GGA-E-FB 1000/34/2,0 with load hook: with cable remote control of the counterweight balancer
    - GGA-E-FB 1000/34/2,0 together with vacuum lifter OKTOPUS® GL-KN 1000 or
    - OKTOPUS® GL-RN 400/600/800: with cable or radio remote control of the vacuum lifter
    Power supply24 V DC battery system





Use of CB-E-FB 1000

Legend

  • Crane attachment
  • telescopic boom/crane arm/lifting column
  • Control panel at the device / cable remote control
  • Radio remote control
  • Battery

CB
